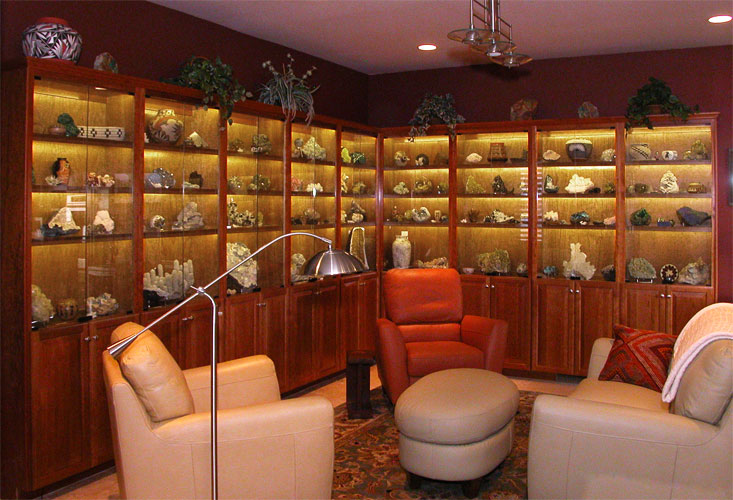

This professional project was done by our customer Ken who installed Ribbon Star Max Warm White LED Strip Lights on each shelf of a large cabinet unit to enhance the items being displayed. The project took close to nine rolls of ribbon and is being controlled by a single dimmer. The signal from the PWM Dimmer with RF remote is being relayed by three Signal Amplifiers. Power is being supplied through one 320W 12VDC Power Supply. This is truly a one of a kind project and Ken did a great job of really bringing these cabinets to life.
Ribbon Star Max Warm White LED Strip Light, 3000-3500K, UL 12VDC - IP20
SKU: RL-SC-RSM-WW-3M View Product Page
The UL Listed Ribbon Star Max LED Ribbon is a perfect solution for backlight and ambient light applications. This 118" (3 meters, approximately 10 Feet) ribbon can be cut every one inch and has many quick connection options for easy connection. Ribbon comes with 3M™ 200MP mounting tape on the back, for the best long-term mounting solution. Six (6) SMD LEDs per two inches, 2.92W per foot of power required for this strip of light. Can be used for coves lighting, toe kicks, under cabinet, backlighting, crown molding and many more applications. Requires a 12VDC Constant Voltage power supply, 3500K color temperature. Comes with two quick connectors. UL Listed for class 2 luminaries and fixtures, RoHS and CE approved.
Mean Well LED Power Supply Three Output 200W - 12VDC
SKU: PS-MW-200-12 View Product Page
A Mean Well 200W 12VDC LED Power Supply / Transformer, with a selectable AC input of either 100-120VAC or 200-240AC and 12VDC output through three terminals. Simple to use screw down style terminals make for an easy and secure connection. Built in short circuit, overload, over voltage, and over heating shut down protection guards the unit from any improper use. This power supply can also withstand a 300VAC input surge for up to 5 seconds. It can be used to connect 12VDC LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other 12VDC Constant Voltage LED Lighting products. UL Recognized, RoHs and CE approved. Can connect up to 180 one watt led lights. Only install face up or in a manner that the cooling grate faces upwards with sufficient breathing space.
