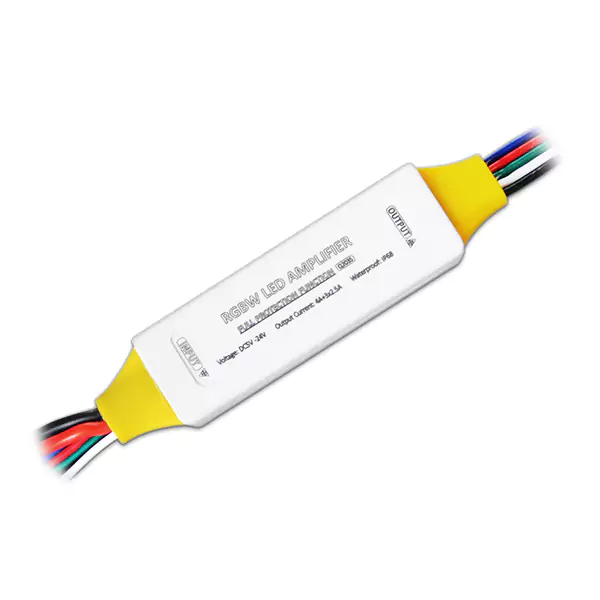

Waterproof Mini RGBW LED Signal Amplifier, 5-24VDC 3x2.5A+4A

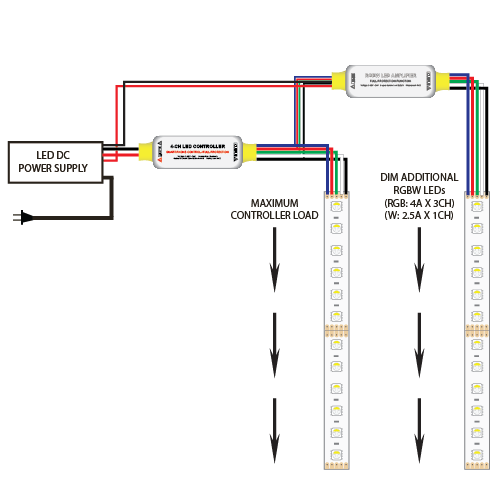

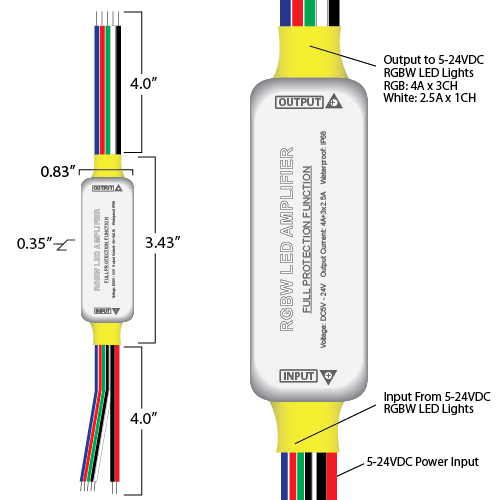

RGBW Amp Dimensions Wiring
RGBW Amp Dimensions Wiring

SKU: LC-LF-RGBWA

Order will ship: Monday, Jun 24 * If placed by Monday, Jun 24, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$35.15
15+
8% off
$34.04
30+
12% off
$32.56
75+
15% off
$31.45

Description

Our Mini Waterproof RGBW LED Signal Amplifier can be used to extend the control signal on any 5-24VDC constant voltage RGBW LED lighting system. An IP68 waterproof rating makes this signal amplifier suitable for both interior and exterior applications. With signal amplifiers you can theoretically create an infinite RGBW LED display by extending the control signal from your RGBW controller. The RGB output can control up to 2.5A x 3CH or 90W at 12VDC, 180W at 24VDC. The white output has a rating of 4A or 48W at 12VDC, 96W at 24VDC. This product is designed for use with 5 pin, 4 loop, common anode style RGBW low voltage LED lighting. Simple bare wire connections make installation a breeze on any new or existing project. The waterproof rating is not designed to be submersed, or meant to be exposed directly to outdoor elements.

Specifications

ModelWaterproof Mini RGBW LED Signal Amplifier
SKULC-LF-RGBWA
DimensionsClick Here
Input Power2 Wire (+/-) 16AWG
In/Out Connection5 Wire RGBW(+) 20AWG
Input Power5 - 24VDC
Output PowerRGB: 2.5A x 3CH
White: 4A x 1CH
Maximum Watts12VDC: RGB-90W / White-48W
24VDC: RGB-180W / White-96W
RatingIP68
Operating Temp-22° ~ 160°F
Warranty Period1 Year
