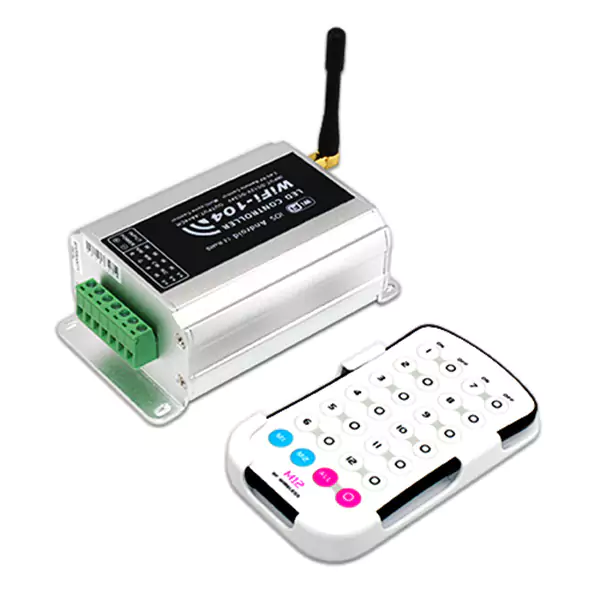

LTECH 4in1 Wifi-104 LED Network Controller and Dimmer, 12-24VDC 4Ax4CH

Wifi 104 LED Controller LED Network Control Wifi 104 LED Receiver Wifi Remote Control 4 in 1 Wifi LED Control Wifi LED Zone Control LED Network Controller Controller Example
Wifi 104 LED Controller LED Network Control Wifi 104 LED Receiver Wifi Remote Control 4 in 1 Wifi LED Control Wifi LED Zone Control LED Network Controller Controller Example

SKU: LC-LT-RGBW-WIFI

$155.99
Order will ship: Thursday, Dec 05 * If placed by Thursday, Dec 05, 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$61.75
15+
8% off
$59.80
30+
12% off
$57.20
75+
15% off
$55.25

Description

The LTECH WiFi-104 is one of our most trusted and stable Wifi LED Controllers, allowing the user to control RGB+W, RGB, two tone, and Single Color LED Strip Light all from your smart phone or tablet through the free 'WiFi-104' app. With this controller you do not have to switch from your home network to get back on the internet, but it still can be used remotely as it's own WiFi source. Each WiFi-104 can control up to 12 zones separately with unlimited receivers per zone using 2.4GHz Wi-Fi, 802.11b/g/n Protocol. This means you can control any type of 5-24VDC in twelve places throughout your WiFi area. 12 built in modes including DIY functionality, color wheel choices, as well as specific 0-255 brightness settings, this controller is one of the most versatile we've seen. Output ratings of 4A x 4 channels allow this controller can handle up to 48W per channel at 12VDC or 96W per channel at 24VDC. Each additional wireless zone receiver can handle 5A x 4 channels or 60W per channel and 240W when all channels are being used, with a 150ft RF signal radius (line of sight). Adjustable SSID settings allow for 16 different WiFi controllers to be operated as their own WiFi device in one space, see the instruction manual below for all of the great features of this product including saving and building custom scenes and pairing the wireless 12 zone receivers. This product is CE and RoHS approved.

Specifications

WiFi-104 ControllerWireless Receiver
Model4 in 1 WiFi LED Network Controller and Dimmer
SKULC-LT-RGBW-WIFI
Dimensions5.02"L x 2.87"W x 1.75"H
Input Connection2 Wire (+/-)
Output Connection5 Wire RGBW(+)
Input Power12 - 24VDC
Output Power4A x 4CH
Maximum Watts12VDC - 192W
24VDC - 384W
RatingIndoor
Operating Temp-22° ~ 131°F
App NameWiFi-104
Warranty Period1 Year
Previous Mode on Power CycleYes
Static Color Choices16 Million
Color Changing Modes12 DIY Custom Modes
ModelReceiver for WiFi-104 Controller
SKULC-LT-RGBW-RC
Dimensions6.89"L x 1.73"W x 1.18"H
Input Power5 - 24VDC
Output Power5A x 4CH
Maximum Watts12VDC - 240W
24VDC - 480W
RatingIndoor
Operating Temp-22° ~ 131°F
Warranty Period1 Year
RF Receiver Radius150ft (line of sight)
Zones12 Zones

Dimensions
