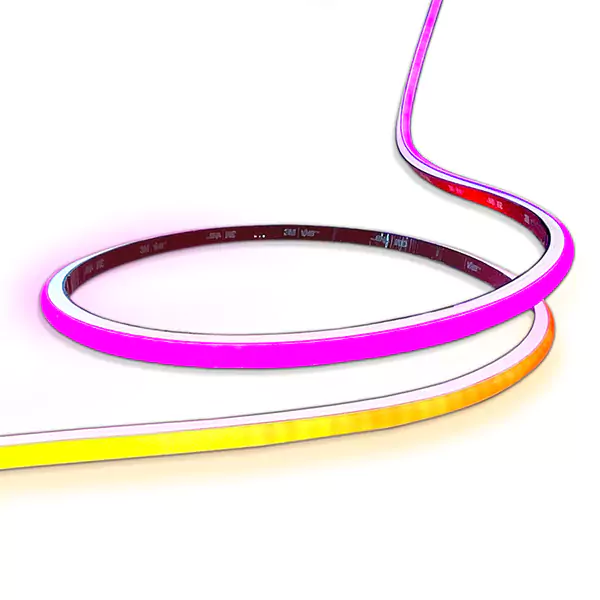

IP67 Dotless RGBIC Addressable SOB LED Strip Lights - UL 12VDC
SKU: RL-SC-DS-SOB-S-5M
$139.99
Order will ship: Tuesday, Jun 10
* If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S.
* Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$133.00
13+
8% off
$128.80
31+
12% off
$123.20
61+
15% off
$119.00
100+
18% off
$114.80
Description

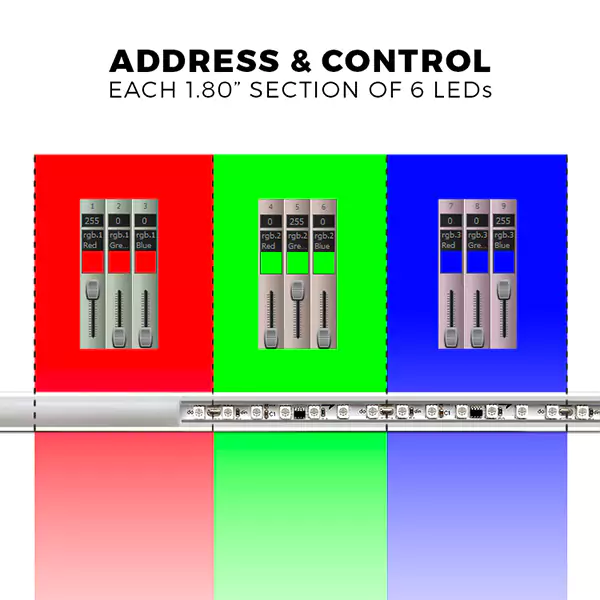

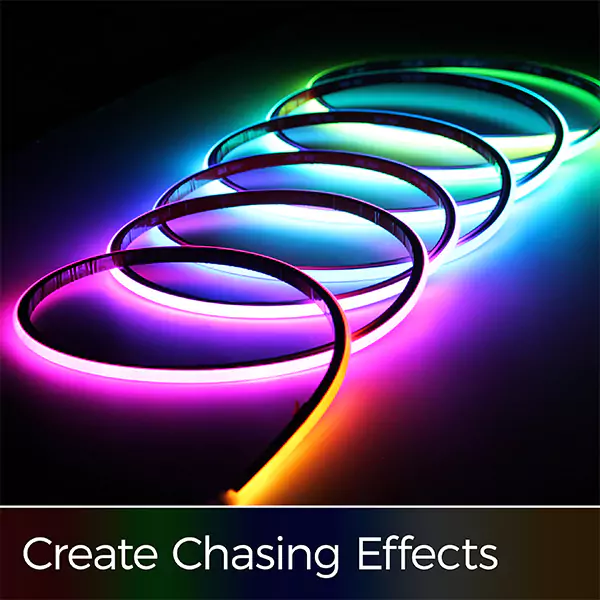

Our dotless addressable RGBIC strip uses a high density 2835 RGB chip in an extruded IP67 waterproof silicone housing with WS2811 integrated circuit to control each 1.79" section 6 LEDs for dot free color changing and chasing effects through DMX protocol or pre-programmed controllers.

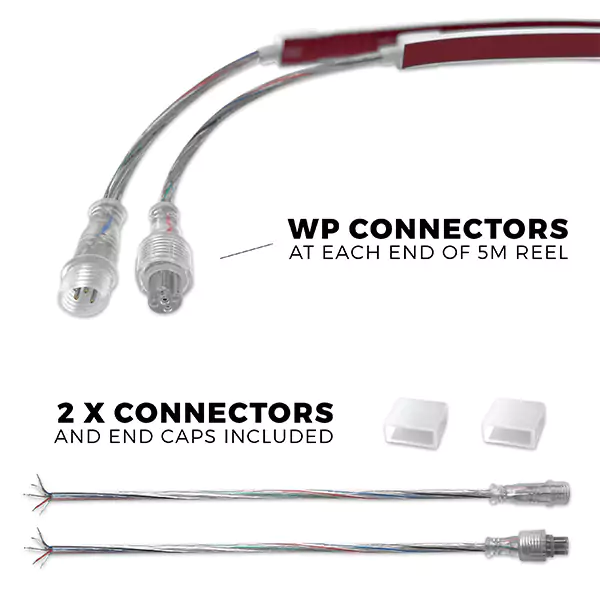

Each 16.4ft Strip Includes
End Caps Lead Caps Cable LeadsProduct Features

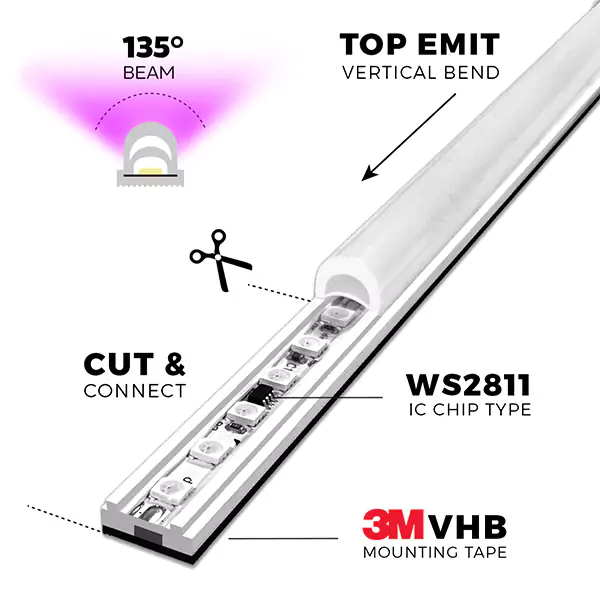

2835 SMD WS2811 IC VHB Tape UL ListedSpecifications
| SKU | Color | IC Type | Lumens | Watts | Voltage | Beam | Rating | Pixel Count | Certification | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|
| RL-SC-DS-SOB-S-5M | RGB | WS2811 | 112 lm/ft | 3.67 W/ft | 12VDC | 135° | IP67 | 110 (5m) | UL Listed | 2 Years |
Dimensions
| Length | Width | Height | Wire Lead | Wire Gauge | Cuttable Sections | Shipping Weight | 16.4'(5m) | 0.39"(10mm) | 0.37"(9.5mm) | 9.50"(24.1cm) | 20AWG | 1.79"(45.45mm) | 0.5lbs |
|---|

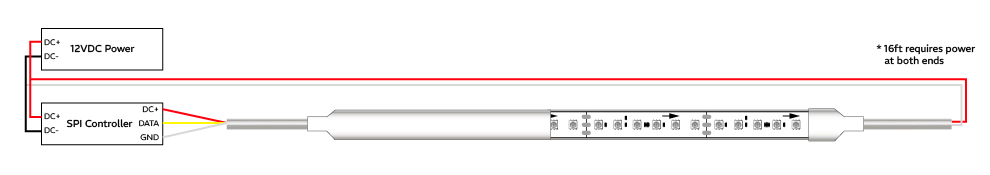

Wiring
