SKU: OA-SC-2C

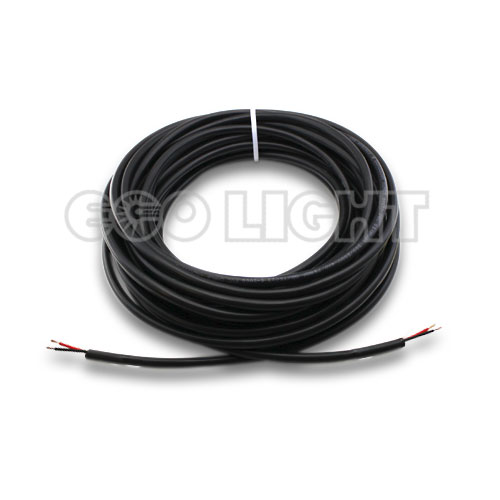

This is a 2 conductor outdoor and waterproof stranded wire, made for use with any of our single color indoor or outdoor rated LED lighting products. Use this 18AWG stranded wire with our strip lights, modules, wall washers, or any low voltage DC system. Wires are sold in 10ft and 50ft increments and will be shipped in one length when possible. Maximum wire lengths available is 650ft, available upon request, please call for details.
| SPECIFICATIONS | |
| Model | 2 Conductor Outdor Wire |
| SKU - 10ft | OA-SC-2C-10 |
| SKU - 50ft | OA-SC-2C-50 |

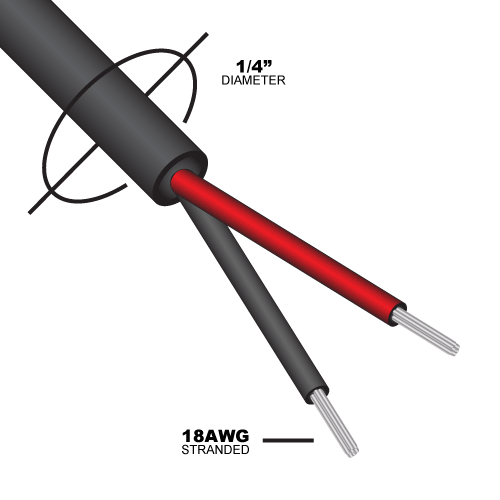

| Wire Size | 18 AWG |
| Max Operating ° | 176° |
| Max Voltage | 240V |
For B2B or Large Quantity Price Info Click Here
PG9 Black Nylon Waterproof Cable Connector Gland
SKU: OA-AM-WP-G9 View Product Page
Our black nylon PG9 waterproof cable glands can be used with our outdoor waterproof 2, 4, and 5 conductor wires to create an IP67 waterproof seal as well as a secure housing for your LED wiring. The PG9 connector is designed for fixing 0.158" - 0.3125" diameter cables to a control boxes, distribution panels, aluminum channels, etc. The design of the clamping rubber interior creates a tight and enclosed seal for a wide range of wire gauges without damaging your wire or devices, as well as decreasing tension from wire connections for a safer and more efficient wiring layout.
Waterproof Wire Jumper Connector, 1-4 Conductor
SKU: OA-GW-CON-1 View Product Page
Our black nylon cable jumper can be used with our outdoor waterproof 2 and 4 conductor wires to create an IP68 waterproof, and dust free seal as well as a secure housing for your 1-4 conductor LED wiring. Each end has an M20 x 1.5 type connector with a rubber grommet designed to seal any of our 0.2" - 0.35" diameter cables. Inside each jumper is a 4 pin screw down type connector for conducting electricity using 1 to 4 of the available ports with a 16A 450VAC max rating. The design of the clamping rubber grommet creates a tight and enclosed seal for a wide range of wire gauges without damaging your wire or devices, as well as decreasing tension from wire connections for a safer and more efficient wiring layout. This easy to use connector makes combining two pieces of wire quick and effortless for a secure and permanent wire connection.
Waterproof Wire 2 Port Junction Box, 1-4 Conductor
SKU: OA-GW-CON-2 View Product Page
Our black nylon waterproof 2 port junction box can be used with our outdoor waterproof 2 and 4 conductor wires to create an IP68 waterproof, and dust free seal as well as a secure housing for your LED wiring. The rubber sealing grommets will work on any 0.2" - 0.35" diameter cables. Inside each junction box is a 4 pin screw down type connector for conducting electricity using 1 to 4 of the available ports with a 24A 450VAC max rating. The design of the clamping rubber interior creates a tight and enclosed seal for a wide range of wire gauges without damaging your wire or devices, as well as decreasing tension from wire connections for a safer and more efficient wiring layout.
Note: * Indicates a required field
2 Conductor Outdoor and Waterproof Wire - 18AWG
The cable handled the task but was a little too heavy (thick gauge) for the job.
Sep 10, 2020 | Terry McKeithen
