SKU: RL-SC-RS50-T-R-10

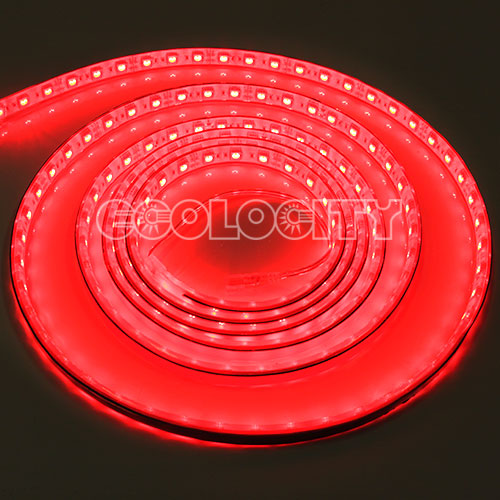

Our high quality Ribbon Star 5050 Waterproof flexible LED Strip Light is a perfect solution for both indoor and outdoor colored lighting applications. The UL Listed Waterproof Ribbon Star 5050 LED Ribbon is fully encased in a heavy duty waterproof coating for an IP66 rating. This 118" (3 meters, 2" under ten feet) ribbon can be cut every two inches and re-connected to conform to any lighting layout. Ribbon comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. Each roll comes with 10 clear plastic screw down holders, 4 closed end caps, 4 end caps with holes for wiring, and a waterproof connector at each end. Three (3) 5050 SMD LEDs per 2", 4.6W per foot of Constant Voltage DC power required for this strip of light. Can be used for outdoor lighting, decks, patios, coves lighting, toe kicks, under cabinet, backlighting, crown molding and many more applications. UL Listed for class 2 luminaries and fixtures, RoHS and CE approved. This product is not intended to be submersed for extended periods.
| Click For Product Data Sheet |
| 50/50 Waterproof 12V Connection Guide |
| LED Strip Light Comparison Guide |
| Click For Electrical Load Calculator |
| SPECIFICATIONS | |
| Model | Ribbon Star 5050 Waterproof, Red, 118" (3m) |
| SKU | RL-SC-RS50-T-R-10 |
| Dimensions | 118" x 0.52" x 0.28"H |
| Connection Type | 2 Wire (+/-) |
| LED Chip Type | 5050 |
| LED Quantity | 3 SMDs per 2 inch |
| LEDs Per Strip | 180 SMD LEDs |
| Input Power | 12VDC Constant Voltage |
| Watts | 4.6W per foot |
| Beam Angle | 120° |
| Rating | IP66 Waterproof |
| Operating Temp | -4°~104°F |
| Max Serial Connection | 20 Feet |
| Certification | UL Listed, RoHS, CE |
| Product Lifetime | 50,000 Hours |
| Warranty Period | 2 Years |
For B2B or Large Quantity Price Info Click Here
TPU End Cap for Single Color Waterproof LED Strips
SKU: RA-SC-RS-EC View Product Page
This TPU (Thermoplastic Polyurethane) end cap is made to cap the end of your single color Ribbon Star LED Strip Lights with TPU coating. Use this end cap with an industrial strength plastic bonding adhesive to close and seal your exposed cuts to water and outdoor proof your LED Strip.
TPU End Cap with hole for Single Color Waterproof LED Strips
SKU: RA-SC-RS-ECH View Product Page
This TPU (Thermoplastic Polyurethane) end cap with holes is made to cap the end your waterproof strip light while allowing connection wires to pass through. Use this end cap with an industrial strength plastic bonding adhesive to close and seal your exposed cuts to water and outdoor proof your LED Strip wire connections.
(3) Waterproof Strip Light Plug Connectors with 24" Lead Wire
SKU: RA-SC-RS-T-RWF-3 View Product Page
Use our 24" plug connectors to bare wire with any of our Waterproof Ribbon Star, Ribbon Star Max, Ribbon Star 50/50, Ribbon Star Extreme, or Ribbon Star Ultra LED Strip lights. They can be used to extend and connect your waterproof LED Strip Lights to a power supply or dimmer or to create a waterproof quick disconnect. They are sold in sets of 3 with a waterproof plug on one end and are only compatible with our waterproof jack connectors.
(3) Waterproof Strip Light Jack Connectors with 24" Lead Wire
SKU: RA-SC-RS-T-RWM-3 View Product Page
Use our 24" Waterproof Jack Connectors to bare wire on any of our Waterproof Ribbon Star, Ribbon Star Max, Ribbon Star 50/50, Ribbon Star Extreme, or Ribbon Star Ultra LED Strip lights. They can be used to extend and connect your waterproof LED Strip Lights to a power supply or dimmer or to create a waterproof quick disconnect. They are sold in sets of 3 with a waterproof jack on one end and can only be mated with our waterproof plug connectors.
(3) Waterproof Strip Light Jack to Plug Connectors with 24" Wire
SKU: RA-SC-RS-T-RWR-3 View Product Page
Use this 24" wire connector on our Waterproof Ribbon Star, Ribbon Star Max, Ribbon Star 50/50, Ribbon Star Extreme or Ribbon Star Ultra LED Strips to add 20 inches of lead wire between Waterproof strips. Each connector has a waterproof plug and jack on each end. This product is sold in sets of 3.
(10) Mounting Clips for Ribbon Star Waterproof Strip Lights
SKU: RA-SC-RS-T-CL-10 View Product Page
These are 10 plastic mounting clips made for use with any of our Waterproof TPU coated LED Strip lights. Use these clips for long term mounting of your waterproof LED Strip lights. Two screw holes make for simple installation. Sold in packs of 10 clips. Click the thumbnail image for clip dimensions.
SILER Aluminum Extrusion for Waterproof Strips - .5" Deep
SKU: EX-KLWP-1 View Product Page
$16.49
