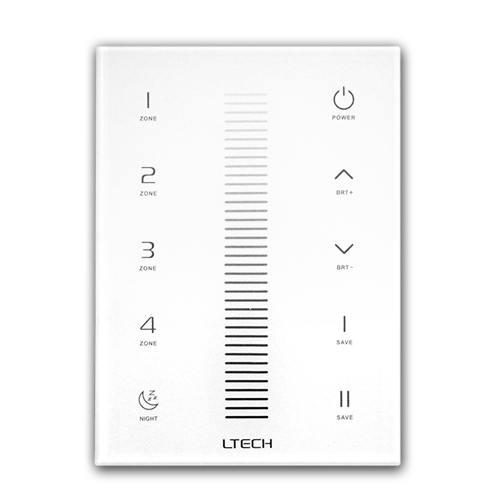

Wall Mount 4 Zone Wireless Single Color LED Dimmer with DMX Output NEW!

SKU: LC-LT-SDIM-UX5

Product Description

The UX5 wall mount LED Dimming system uses state of the art technology to create a complete dimming package that allows you to control 4 zones of low voltage single color LED lighting in a variety of ways. With the addition of the V5 remote you can control from the wall pad or using a hand held remote. Furthermore you can pair the UX5 to a WiFi-104 controller to control from a smartphone app, wall unit, or hand held remote. This is an ideal product for high end lighting projects that desire control from a variety of sources. In its simplest form you can pair an unlimited amount of RF receivers over 4 zones, or use a wired setup using single channel DMX decoders and the DMX output on the UX5 unit. Each wireless receiver can control 5 amps of lighting over 4 channels. This means that you can control 4 strings of 12V 60W LEDs or 4 strings of 24V 120W LEDs from each receiver. This product is indoor rated, RoHS and CE approved.

Product Downloads
Product Specifications
SPECIFICATIONS
Model4 Zone Wall Mount Dimmer
UX5 SKULC-LT-SDIM-UX5
V5 Remote SKULC-LT-SDIM-V5R
Dimensions5.74"L x 4.17"W x 0.71"H
Input Connection2 Wire (+/-)
Output Connection3 Wire DMX(+)
2.4GHz Wireless RF
Input Power5VDC
Control ModeSingle Channel, 4 Zones
RatingIndoor
Operating Temp-22° ~ 131°F
Warranty Period1 Year
Previous Mode on Power CycleYes
Dimming Levels255 Grey Scale
Receiver Specifications
ModelReceiver for UX5 Controller and V5 Remote
SKULC-LT-RGBW-RC
Dimensions6.89"L x 1.73"W x 1.18"H
Input Power5 - 24VDC
Output Power5A x 4CH
Maximum Watts12VDC - 240W
24VDC - 480W
RatingIndoor
Operating Temp-22° ~ 131°F
Warranty Period1 Year
RF Receiver Radius150ft (line of sight)
ZonesUnlimited Receivers, 4 Zones
Wiring Diagrams
thumb
thumb
thumb
thumb
Important Information

This product requires a Wireless Receiver or 1 Channel DMX Decoder to operate.

To operate using WiFi smart phone app a WiFi-104 Controller must be used.

UX5 Controller: LC-LT-SDIM-UX5
Prod Image
$99.99
V5 Remote: LC-LT-SDIM-V5R
Prod Image
$34.99
Wireless Receiver: LC-LT-RGBW-RC
Prod Image
$64.99
Buy
Discount
You Pay
6+
5% off
$61.75
15+
8% off
$59.80
30+
12% off
$57.20
75+
15% off
$55.25
