Waterproof Wire 8 Port Connector, 2-5 Conductor

SKU: OA-GW-CON-8

Product Description

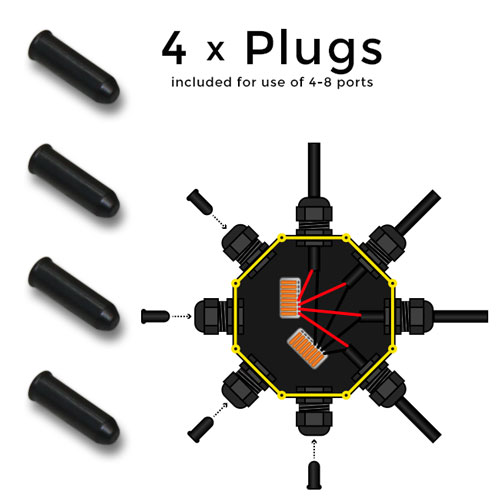

Our black nylon waterproof 8 port junction box can be used with our outdoor waterproof 2, 4 and 5 conductor wires to create an IP68 waterproof, and dust free seal as well as a secure housing for your LED wiring. The rubber sealing glands will work on any 0.25" - 0.35" diameter cables. Use with our 8 port lever wire nuts (sold separately) for quick and easy connections. The design of the clamping rubber interior creates a tight and enclosed seal without damaging your wire or devices, as well as decreasing tension from wire connections for a safer and more efficient wiring layout. Each junction box includes 4 rubber plugs in order to use 4-8 of the available wire ports.

Product Specifications
SPECIFICATIONS
Model8 Port Waterproof Connector
SKUOA-GW-CON-8

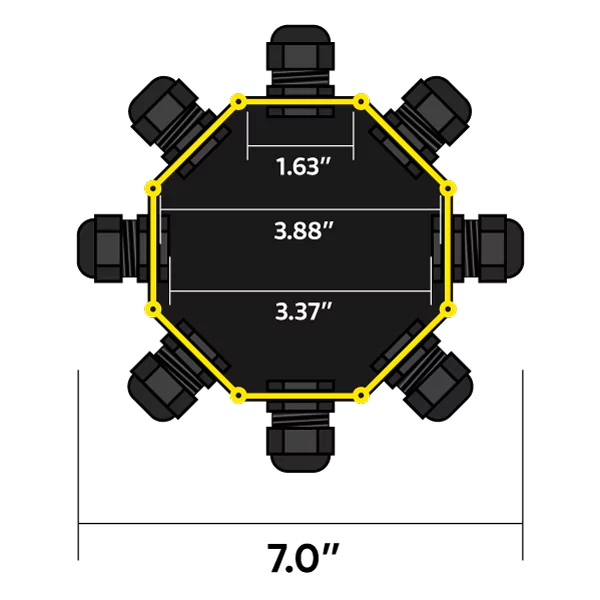

Dimensions7.0" x 7.0" x 2.0"
Wire Diameter0.25" - 0.35"
Operating Temp-4° ~ 212°F
RatingIP68

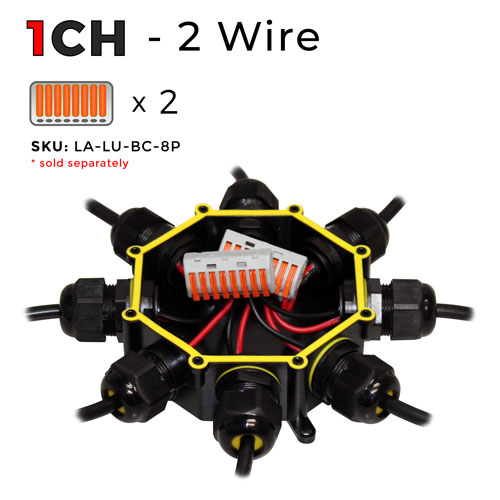

8 Port Clamp Down Lever Wire Nut

SKU: LA-LU-BC-8P     View Product Page
This 8 pole clamp down connector is an easy to use 8 wire connector for mating and extending 16-22AWG wire. This connector can be used for both low and high voltage not exceeding 250V. Use to connect one power or control line in and 7 lines out in a parallel connection. See thumbnail images for reference. This product is sold individually.

8 Port Clamp Down Lever Wire Nut

2 Conductor Outdoor and Waterproof Wire - 18AWG

SKU: OA-SC-2C     View Product Page
This is a 2 conductor outdoor and waterproof stranded wire, made for use with any of our single color indoor or outdoor rated LED lighting products. Use this 18AWG stranded wire with our strip lights, modules, wall washers, or any low voltage DC system. Wires are sold in 10ft and 50ft increments and will be shipped in one length when possible. Maximum wire lengths available is 650ft, available upon request, please call for details.

2 Conductor Outdoor and Waterproof Wire - 18AWG

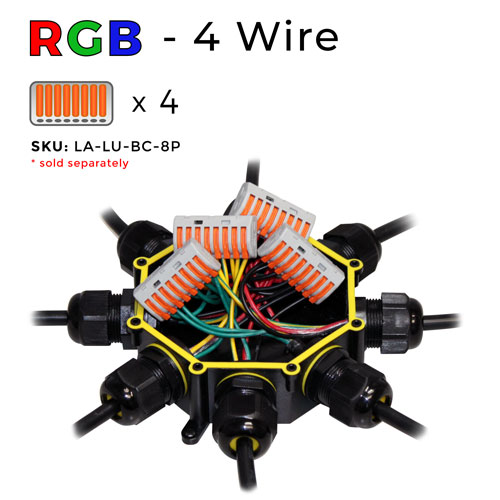

4 Conductor Outdoor and Waterproof Wire - 18AWG

SKU: OA-SC-4C     View Product Page
This is a 4 conductor 18AWG encased outdoor and waterproof wire, made for use with our stainless steel IP68 junction boxes or any other indoor or outdoor LED lighting project. Use this wire with our underwater and outdoor RGB LED fixtures, Strip Lights, Modules, or any other low voltage DC system. If used properly with our junction boxes this wire can be be fully submersible and dust concealed to supply an RGB Control signal to as many fixtures as your junction box will allow. This wire is also a great option for any indoor or outdoor RGB LED projects requiring a 4 conductor encased wire. Wires are sold in 10ft and 50ft increments and will be shipped in one length when possible. Maximum wire lengths available is 650ft, available upon request, please call for details.

4 Conductor Outdoor and Waterproof Wire - 18AWG

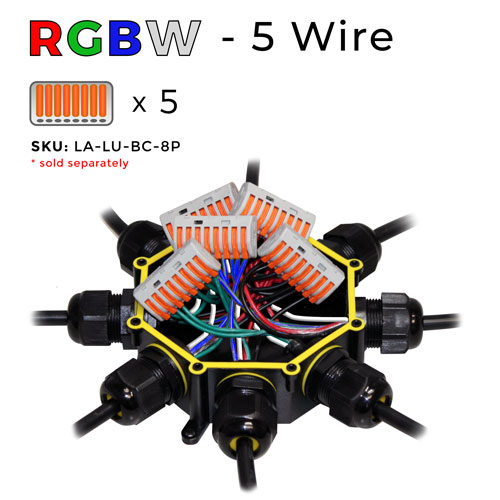

5 Conductor Outdoor and Waterproof Wire - 18AWG

SKU: OA-SC-5C     View Product Page
This is a 5 conductor 18AWG encased outdoor and waterproof wire, made for use with our RGB Extreme Strip Light and RGB + White Strip lights. This wire can also be used for any other indoor or outdoor low voltage LED lighting projects. If used properly with our junction boxes this wire can be be fully submersible and dust concealed to supply an Control signal to as many fixtures as your junction box will allow. Wires are sold in 10ft and 50ft increments and will be shipped in one length when possible. Maximum wire lengths available is 650ft, available upon request, please call for details.

5 Conductor Outdoor and Waterproof Wire - 18AWG
