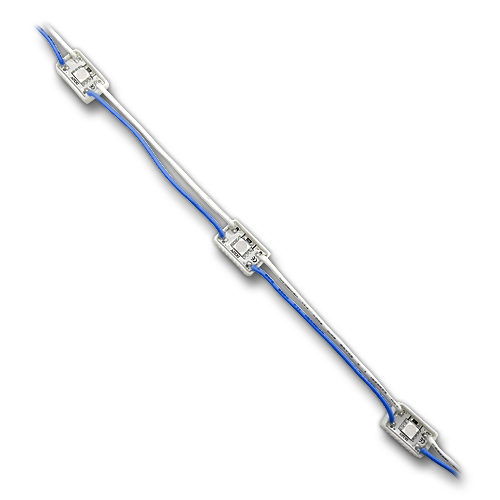

This LED backlight module is a truly unique product. When your project calls for a light with a small form factor and physical imprint look no further than our Dwarf Star 1 module. This product easily conforms to linear, circular or curved layouts with a max serial connection of 50 modules. Don't let the small size of this LED module fool you, it is more than capable to handle all your lighting needs with a max output of 0.24W per LED chip. The Dwarf Star has the ability to be cut at the lead wires between each module for ultimate tailoring to your project. This tiny powerhouse module is ideal for channel letter, halo lighting, sign lighting, accent and cove lighting, under cabinet lighting, hobbyist lighting, model architectural lighting and many more projects! A constant voltage DC power source is needed to power this product. The plastic ABS shell and clear epoxy coating provides limited water-resistance to moisture. Not submersible or UV proof.
The SKU, Price, Module Length and Max Serial Connection for this product has changed, they are now available in 10 & 40 units at a lower price per module! 20 Modules maximum in series or 40 with power from both ends.
| Click For Product Data Sheet |
| Calculate Electrical Load | |
| * Power Supply capacity must be larger than minimum lighting load. | |
| SPECIFICATIONS | |
| Model | Dwarf Star 1 chip LED Backlight Module - Blue |
| SKU | MD-HT-ES1-B |

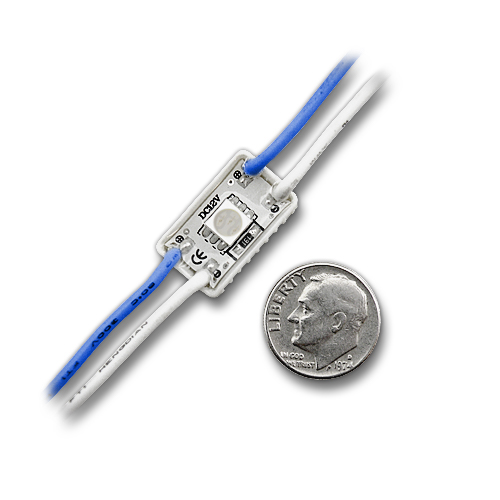

| Dimensions | 0.8" x 0.5" x 0.16"H |
| Connection Type | 2 Wire (+/-) 20AWG |
| LEDs Chip Size | 5050 |
| LEDs Quantity | 1 LED per Module |
| Module Spacing | 4.09" Center to Center |
| Module Count | 10 per 3.25 ft 40 per 13 ft |
| Input Power | 12VDC |
| Watts | 0.24 Watts per module |
| Beam Angle | 120° |
| Rating | IP65 Water-resistant |
| Operating Temp | -4° ~ 122°F |
| Max Serial Connection | 20 Modules 40 Modules Looped Circuit |
| Lifetime Hours | 50,000 Hours |
| Certification | CE, RoHS |
| Warranty Period | 1 Year |
