ES4 RGB Light Module with 160° Lens - 12VDC

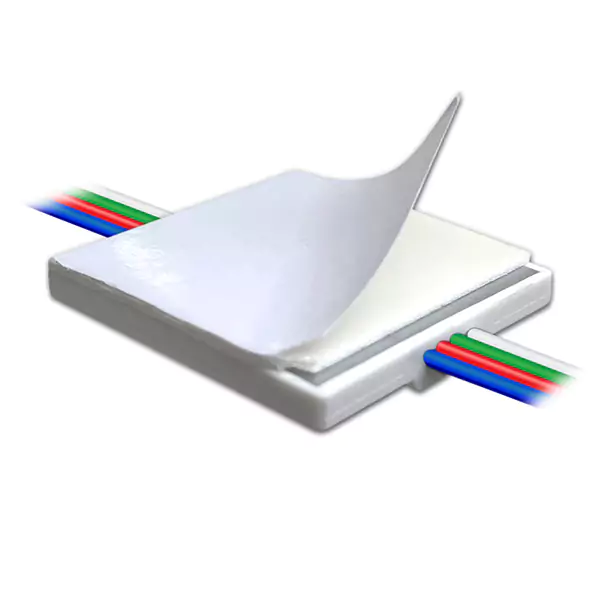

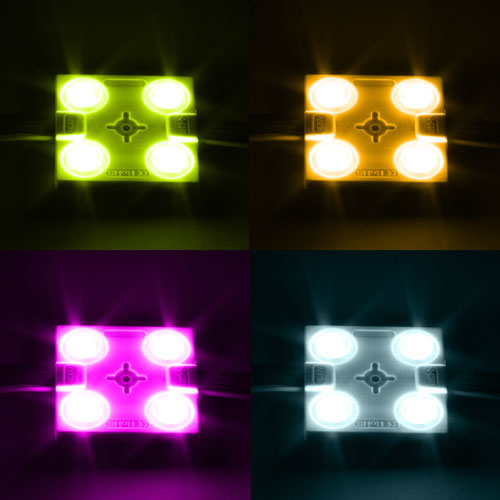

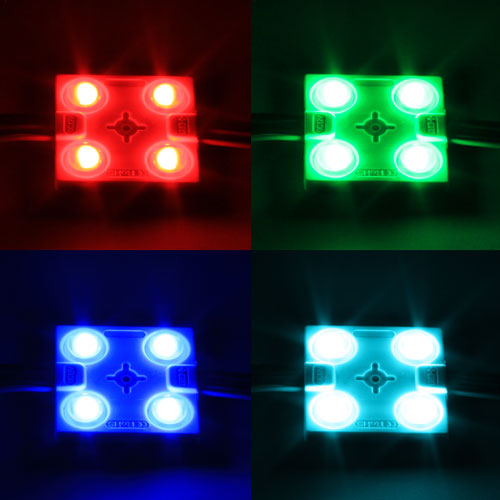

160 Deg RGB VHB Tape 2 Modules Color Examples Color Examples RGB Blue Sign Light RGB Green Sign Light RGB Blue Sign Light
160 Deg RGB VHB Tape 2 Modules Color Examples Color Examples RGB Blue Sign Light RGB Green Sign Light RGB Blue Sign Light

SKU: MD-HT-ES4-RGB-20

Order will ship: Monday, Jun 24 * If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
5+
5% off
$28.50
10+
8% off
$27.60
15+
10% off
$27.00

Description

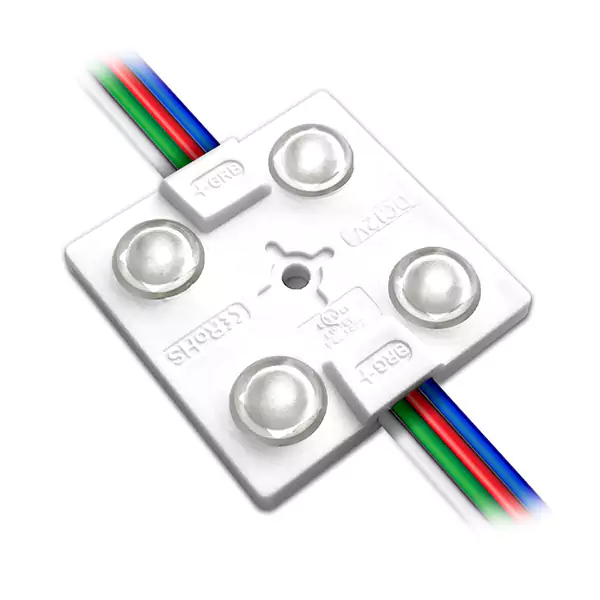

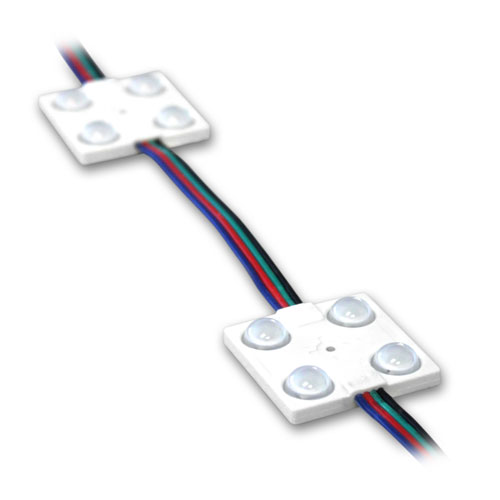

Our 4 Chip RGB LED Modules are created from a lightweight ABS plastic injected molding with a PC (Perspective Control) lens to widen the beam angle to 160 degrees. Each module has four RGB 3in1 LED chips mounted to an internal circuit board with lead wires attached from each end. These modules can be cut or connected from either end of the wire leads. Each bundle of modules comes with a string of 20 pieces containing 3.56" of lead wire between each module. The wider beam angle creates more light dispersion in shallow light boxes and channel letters. These color changing lighting modules require at least 1.44W of 12VDC constant voltage power per module as well as a color controller to operate. To light all 20 pieces you would need a minimum of 28.8 watts of 12VDC power. No more than 20 modules should be powered in a serial connection, 40 modules can be powered in a looped circuit. Please use parallel connections for larger lighting runs. IP66 rating is totally dust tight with protection against direct high pressure water jets (non-submersible).

Specifications

SPECIFICATIONS
Model4 Chip LED Backlight Module - RGB
SKUMD-HT-ES4-RGB
Dimensions1.44" x 1.44" x 0.33"H
Connection Type4 Wire RGB(+)
LEDs Chip Size5050
LEDs Quantity4 LEDs per Module
Module Spacing5.0" Center to Center
Module Count20 per 8'
Input Power12VDC
Watts1.44 Watts per Module
Beam Angle160°
LumensR: 7.5 lm
G: 17.59 lm
B: 6.28 lm
RatingIP66 Water-Resistant
Operating Temp-40° ~ 140°F
Max Serial Connection20 Modules
40 Modules Looped Circuit
Lifetime Hours50,000 Hours
CertificationCE, RoHS
Warranty Period1 Year
