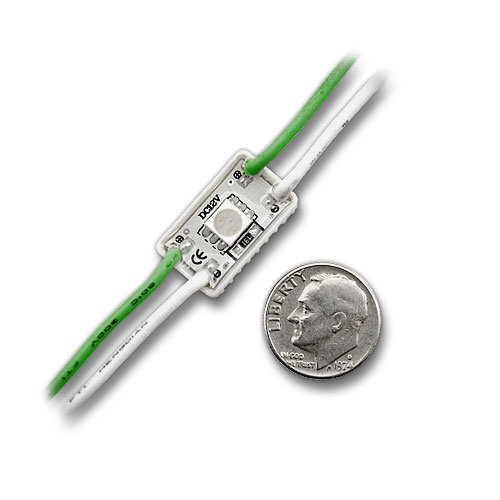

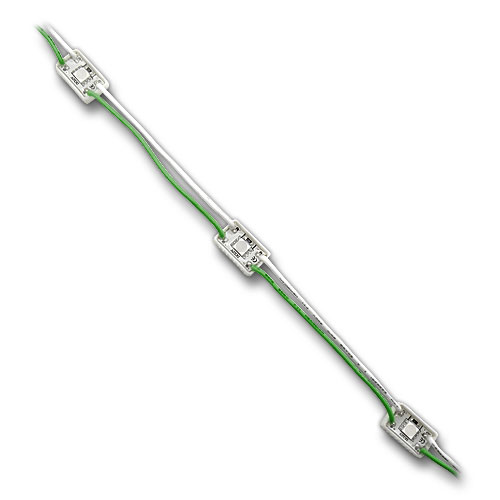

This LED backlight module is a truly unique product. When your project calls for a light with a small form factor and physical imprint look no further than our Dwarf Star 1 module. This product easily conforms to linear, circular or curved layouts with a max serial connection of 50 modules. Don't let the small size of this LED module fool you, it is more than capable to handle all your lighting needs with a max output of 0.24W per LED chip. The Dwarf Star has the ability to be cut at the lead wires between each module for ultimate tailoring to your project. This tiny powerhouse module is ideal for channel letter, halo lighting, sign lighting, accent and cove lighting, under cabinet lighting, hobbyist lighting, model architectural lighting and many more projects! A constant voltage DC power source is needed to power this product. The plastic ABS shell and clear epoxy coating provides limited water-resistance to moisture. Not submersible or UV proof.
The SKU, Price, Module Length and Max Serial Connection for this product has changed, they are now available in 10 & 40 units at a lower price per module! 20 Modules maximum in series or 40 with power from both ends.
|Click For Product Data Sheet|
|Click For Electrical Load Calculator|
|Model||Dwarf Star 1 chip LED Backlight Module - Green|
|Dimensions||0.8" x 0.5" x 0.16"H|
|Connection Type||2 Wire (+/-) 20AWG|
|LEDs Chip Size||5050|
|LEDs Quantity||1 LED per Module|
|Module Spacing||4.2" Center to Center|
|Modules Per Foot||2.86 Modules|
|Watts||0.24 Watts per module|
|Operating Temp||-4° ~ 122°F|
|Max Serial Connection||50 Modules|
|Lifetime Hours||50,000 Hours|
|Warranty Period||1 Year|
|Downloads & Info|
|Click For Product Data Sheet|
2 Conductor DC Connection Wire Red/Black Pair - 22AWG
SKU: LA-SS-DC22 View Product Page
This is a 22 American Wire Gauge DC Connection wire with a Red/Black bonded pair. This connection wire is suitable for connecting LED lighting products using DC electrical Current.
Mean Well Plug-in LED Power Supply 40W - 12VDC
SKU: PS-MW-40-12 View Product Page
Our Mean Well brand 12VDC plug-in style, 40 Watt Constant Voltage LED AC/DC Power Transformer can be used in dry locations to output up to 40 Watts or 3.34 Amps of 12VDC power for 12VDC LED lights and controllers. The AC wall input is made through a common 3 prong wall plug cord and the 12VDC output uses a 5.5mm x 2.1mm female plug (5.5mm x 2.1mm male barrel jack included). Built in short-circuit, overload, and over voltage protection guards from damage do to improper installation. Use this LED power supply to connect 12VDC LED Strip Lights, LED Modules, LED Lights, RGB LED lighting and other LED Lighting products. UL listed, RoHs and CE approved.
LED PWM Dimmer Inline, 12-24VDC 2A
SKU: LC-OL-8DIM View Product Page
This small inline LED PWM Light Dimmer uses a knob to dim your LED lighting products and comes with barrel jacks for easy connection between led lights and your power supply. It requires 12 or 24VDC input to operate, can handle 1 channel up to 2A or 24W of power at 12VDC and 48W at 24VDC. Connections are 5.5mm X 2.1 Barrel style jacks. Can be used to dim LED lights, LED modules, LED light Ribbon or for dimming pretty much any one color LED product with 12 or 24VDC constant voltage power requirements.
Note: * Indicates a required field
- There are currently no reviews for this product
