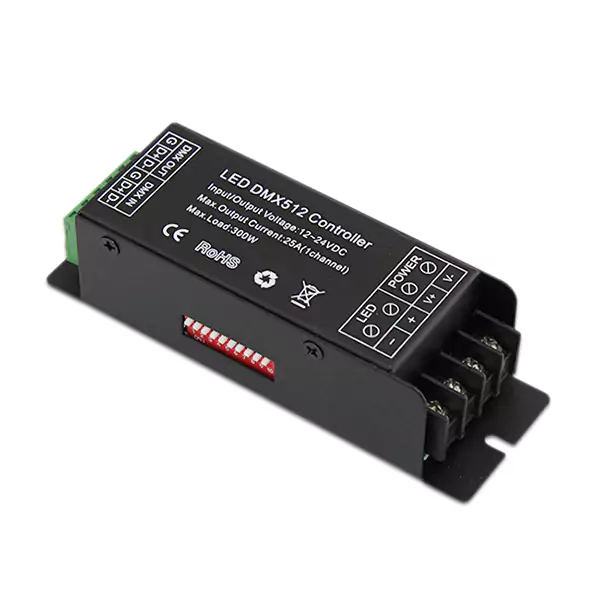

Flicker Free Single Channel LED DMX Decoder, 12-24VDC 25Ax1CH

Single Channel Driver
Single Channel Driver

SKU: LC-HO-DMX1-FF

Order will ship: Thursday, Dec 05 * If placed by 2:00pm PST.
Free Shipping On orders over $250 within the Continental U.S. * Excluding oversized items. See Exclusions
Buy
Discount
You Pay
6+
5% off
$42.75
15+
8% off
$41.40
30+
12% off
$39.60
75+
15% off
$38.25

Description

Our flicker free single channel DMX LED driver is the top choice for lighting professionals who require smooth dimming effects with no apparent flicker or choppy dimming levels. The high PWM frequency of 7.8KHz allows for 0-255 fluid dimming steps with no visible distortion, perfect for HD filming. Simple screw down connectors make it easy to install your 12-24VDC input, LED output, as well as DMX connection using a small screw driver. Each decoder has a set of 10 dip switches for setting your DMX address and also for test functions when no DMX signal is present. An impressive 25 amps output by one channel allows you to control up to 300W of 12VDC single color LED lighting or 600W of 24VDC monochrome LED Lighting. This product is intended only for use with 12-24VDC common anode style single color LED Lighting. DMX input and outputs require a bare wire connection and can be connected to a DMX512 signal using 3 bare wires, DMX+ / DMX- / Ground. This product is RoHS and CE approved.

Specifications

ModelFlicker Free Single Channel LED DMX Driver
SKULC-HO-DMX1-FF
Dimensions5.0" x 1.65" x 1.30"H
DMX TypeDMX 512
DC Power12 - 24VDC
25A x 1CH
Watts12VDC: 300W
24VDC: 600W
Refresh Rate7.8KHz
RatingDry
Operating Temp-4°~140°F
Warranty Period1 Year
Test FunctionYes See Modes
  1. 1% Brightness
  2. 10% Brightness
  3. 25% Brightness
  4. 50% Brightness
  5. 75% Brightness
  6. 90% Brightness
  7. 100% Brightness
  8. Flash On/Off
  9. Fade On/Off
