SKU: LN-DX-NE-WH-RH-5

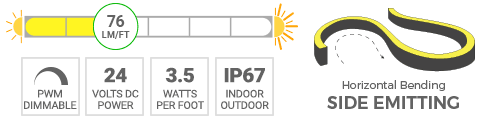

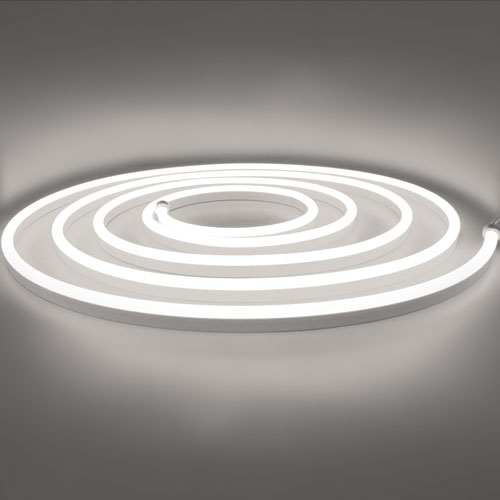

Our Side Emitting White (6,000K) LED Neon Flex has a special rounded top that imitates traditional neon lighting without risky operating voltage or nasty chemicals. Each 5 meter roll of has a dual core silicone housing that is IP67 waterproof rated, salt water, and UV resistant. The special milky coating creates unobtrusive dot free illumination for a line of light effects on walls, buildings, displays, and architecture. This strip is designed to bend on a horizontal axis and requires clips or mounting profile to adhere. Use this neon led indoors and outdoors for a variety of lighting projects both functional and decorative. This strip requires 24 volt DC input and consumes 3.51 watts of power per foot, at full brightness. This product is dimmable by our PWM low voltage dimmers or by our magnitude dimmable power supplies with compatible wall switch. This strip can be cut and re-connected every 1.97" and comes with 1 extra wire lead setup, 1 end cap, and 10 mounting clips. Each 5M roll of neon flex is ETL listed, RoHS and CE approved.
| Click For Product Data Sheet |
| Calculate Electrical Load | |
| * Power Supply capacity must be larger than minimum lighting load. | |
| SPECIFICATIONS | |
| Model | Round Neon Side Emitting, Waterproof White |
| SKU | LN-DX-NE-WH-RH-5 |
| Dimensions | 197" x 0.47" x 0.79"H |
| Connection Type | 2 Wire (+/-) |
| LED Chip Type | 2835 |
| LED Quantity | 6 SMDs per 1.97 inches |
| LEDs Per Strip | 600 SMD LEDs |
| Input Power | 24VDC Constant Voltage |
| Watts | 3.51W per foot |
| Beam Angle | 170° |
| Lumens | 76.22 lm/ft |
| CRI | >80 |
| Kelvin | 6,000K |
| Rating | IP67 Waterproof |
| Ambient Temp | -4°~113°F |
| Max Serial Connection | 20 Feet |
| Certification | ETL, RoHS, CE |
| Warranty Period | 2 Years |
White LED Neon Round Waterproof Horizontal Bend Side Emitting - ETL 24VDC - 197"(5m)
White LED Neon Round Waterproof Horizontal Bend Side Emitting - ETL 24VDC - 197"(5m)
White LED Neon Round Waterproof Horizontal Bend Side Emitting - ETL 24VDC - 197"(5m)
For B2B or Large Quantity Price Info Click Here
Aluminum Mounting Track for 10mm Side Emitting Flat & Round Top LED Neon
SKU: LN-DX-NEA-AP-17 View Product Page
This product is a 1 meter long (3.28ft) aluminum track for mounting our flat top and round top RGB and single color LED neon flex. This product is intended only for our 10mm RGB, white and warm white side emitting neon flex strips listed below. Each 3.28 foot of mounting track includes two 1" long self tapping screws. The track is designed with extra space for screw heads so there is no need to counter sink. Easily install the track by mounting and then pushing the LED neon flex strip into place. This track enables smooth and straight linear lighting, with no sags, annoying light dots or hot spots. Please note that factory wire leads, end caps, and connectors do not fit inside the track.
Silicone End Cap with Hole and 2 Wire Lead for Round Side Emitting White Neon Flex
SKU: LN-DX-NSR-WH-ECH View Product Page
A 12" long 22AWG 2 wire solder lead with white PVC jacket and one holed end cap for re connection of White and Warm White Side Emitting Neon Flex Strips. The wire lead must be soldered when cutting and re-connecting our single channel side emitting round neon flex strips. Silicone Adhesive is required to maintain IP67 waterproof level. Wires are cut shorter and pre-tinned on the end intended for soldering. All additional accessories are listed found below.
Silicone End Cap for Rounded Side Emitting Neon Flex
SKU: LN-DX-NSR-EC View Product Page
A silicone end cap for sealing non wired ends of both our RGB and Single Color Side Emitting Neon Flex Strips. This end cap is intended only for the Round topped version of the flex strip. Silicone Adhesive is required to maintain IP67 waterproof level. All accessories can be found in products listed below.
RTV 4500 High Strength Silicone Sealant - 2.8oz Clear
SKU: OA-AM-SIL-GLU View Product Page
Use the RTV 4500 Silicone Sealant to adhere end caps and connectors to our waterproof silicone LED Strip Lights and Neon Flex Lights. RTV Silicone Sealant has excellent resistance to extreme temperature, moisture, ozone, vibration, and weathering. Product Specs: One-part acetoxy silicone rubber sealant Approved as a food grade silicone - NSF/ANSI Standard 51, USDA approved Will not crack or become brittle with age Application temperature -35 to 140° F.
Precision Micro Shears for Silicone Strip Housing and Small Wires
SKU: OA-AM-SIL-CUT View Product Page
Our micro precision snipping shears are a great additional tool to have. They are especially useful when prepping waterproof strip lights for new wire connections. The small snips make it easy to cut through the silicone housing to expose the copper pads below for soldering. The snips can also be used for small precision wire and soldering cuts not exceeding 1mm diameter (0.04").
