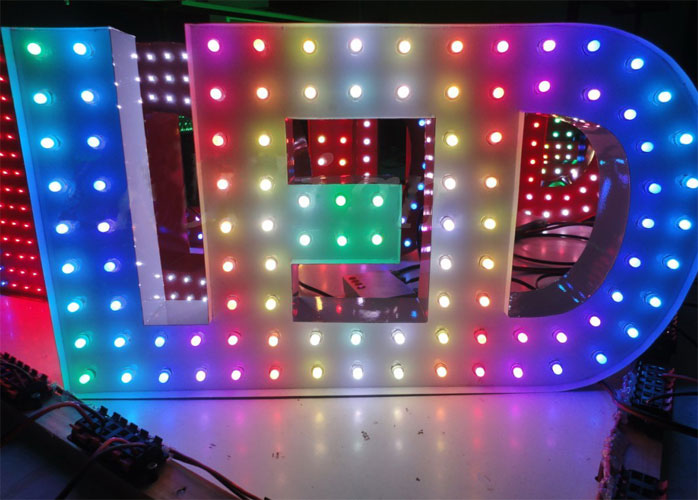

Create large arrays and pixel matrix color changing effects using our low voltage addressable dot pixel modules. This product is a 5VDC Digital Pixel LED with a 1903 type IC chip. Control each LED pixel using DMX control or any compatible controller for a 1903 type IC chip. Each pixel light uses 3 DMX channels and will flow in sequence from the starting channel, 150 DMX channels per 50 pixels. 0.3W per module, requiring 15W of 5VDC power per 50 modules. These modules easily install in any 0.47"(12mm) diameter hole. If you are not sure this is the right product for you please call and consult a sales associate before ordering.
|Model||1 Chip Digital Dot RGB LED Pixel Kit|

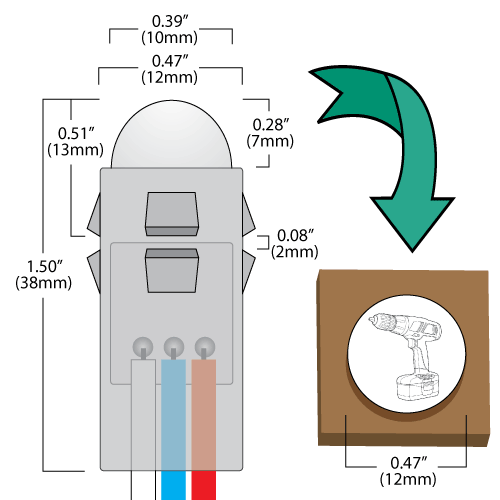

|Module Dimensions||0.46" x 0.46" x 1.5"H|
|Connection Type||3 Wire: Data, Ground, (DC+)|
|IC Type||1903 IC|
|LEDs Chip Size||5050|
|LEDs Quantity||1 LED per Module|
|Module Spacing||3.0" Center to Center|
|Modules Per Foot||3.42 Modules|
|Watts||0.3 Watts per module|
|Operating Temp||-31° ~ 131°F|
|Max Serial Connection||Unlimited Depending on Control Source (Power every 50 Modules)|
|Lifetime Hours||50,000 Hours|
|Warranty Period||1 Year|
Mini Digital LED Pixel Controller with RF Remote, 5-24VDC 10A
SKU: LC-LT-PXL-1 View Product Page
Our Mini LED Pixel Controller with RF Remote is a small and powerful controller that creates vibrant color changing and color chasing effects using 5-24VDC digital type LED Strip lights, modules, or pixel lights with compatible type IC chips. With 16 built in modes and the ability to change the speed, brightness, pixel length (8-1020px), IC type, chasing direction, and RGB order; this controller packs tons of functionality into a small package. Enhanced functions include playback of your favorite scenes in any order that you choose. With a max output rating of 10A this controller can power no more than 50W at 5VDC, 120W at 12VDC, or 240W at 24VDC.
Compatible IC Types:
TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, WS2811, WS2812, P9813
Mean Well LED Power Supply Three Output 200W - 5VDC
SKU: PS-MW-200-5 View Product Page
A Mean Well 200W 5VDC LED Power Supply / Transformer, with a selectable AC input of either 100-120VAC or 200-240AC and 5VDC output through three terminals. Simple to use screw down style terminals make for an easy and secure connection. Built in short circuit, overload, over voltage, and over heating shut down protection guards the unit from any improper use. This power supply can also withstand a 300VAC input surge for up to 5 seconds. It can be used to connect 5VDC LED Modules, LED Strip Lights, RGB LED lighting and other 5VDC Constant Voltage LED Lighting products. UL Recognized, RoHs and CE approved. Only install face up or in a manner that the cooling grate faces upwards with sufficient breathing space.
110V Wall Plug Cord Three Prong - 6ft
SKU: LA-EL-CON1 View Product Page
A three prong 110V wall plug power cord for LED Power Supplies. This cord is used to connect a power supply to a 110 volt outlet. 16AWG, 6' long 3 prong, 3 wire. Black wire = Load, White wire = Neutral, Green wire = Ground.
