Mini RGB LED Controller with RF Remote, 5-24VDC 2A/CH


Product Description

Don't be fooled by the size of this 5-24 Volt Mini RGB LED Controller, it is loaded with functionality and has an RF remote range of up to 50ft. It can be used to control color effects for 5-24 Volt DC Constant Voltage RGB LED Strip Lights, RGB LED modules and RGB LED lights. This RGB LED Controller is for use with 4 pin, 3 loop cable, common anode style constant voltage RGB LED Lights. With 2A per channel output this controller can handle an 72W at 12VDC and 144W at 24VDC. Functions include 20 static colors with 5 levels of dim (minimum dim level %30), and a variety of color flashing, strobing, and fading modes with 5 levels of speed adjustment. Each RF remote can be paired with its controller by pressing the Power and Mode+ button within 5 seconds of DC input. Power is wired through a 5.5 X 2.1mm male barrel connector (opposite gender not included).

Product Downloads
Product Specifications
ModelMini RGB LED Controller with RF Remote
Dimensions1.5"L x 0.5"W x 0.2"H
4.0" Lead Wire
Input Connection5.5x2.1mm Male Barrel
Output Connection4 Wire RGB(+) 22AWG
Input Power5 - 24VDC
Output Power2A x 3CH
Maximum Watts12VDC - 72W
24VDC - 144W
Operating Temp-22° ~ 131°F
Warranty Period1 Year
Previous Mode on Power CycleYes
RF Remote Radius50ft (line of sight)
Static Color Choices20, 5 levels Dim
Color Changing Modes21 Modes See Modes
Wiring Diagrams
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

Ribbon Star Flex, RGB LED Strip Light - 24VDC

SKU: RL-DX-RSF-RGB-10     View Product Page

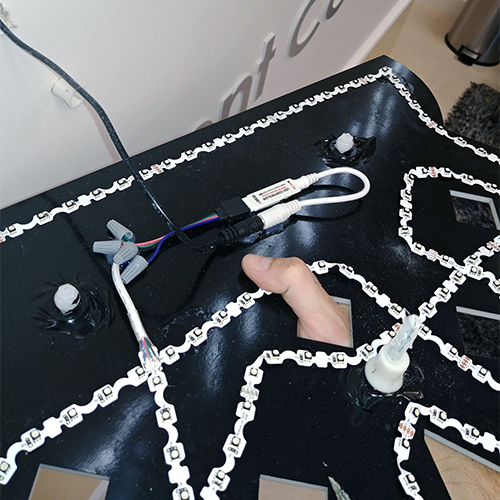

Our color changing 24VDC Ribbon Star Flex RGB LED Strip Light incorporates a sophisticated PCB design that allows the strip light to be bent, twisted, and curved on a horizontal axis without damaging the electrical circuit. Unlike traditional RGB strip lights which only bend like you see when rolled up on a reel, this strip can be manipulated to create custom shapes, designs, lettering, and adhere to irregular layouts. With cuttable sections every 3.97" this color changing tape light can be cut and reconnected to any length, an 11" wire lead is factory soldered to the beginning of each roll. Please note: This strip must be soldered using 4 conductor stranded wire to cut and re-connect. With use of a common anode 24VDC color controller this strip light can be dimmed, brightened, and output over 16 million color variations (255 levels of Red, Green, and Blue). Requiring 3.3 watts of 24VDC constant voltage power per foot of strip, an entire 3 meter roll would require at least 33 watts of 24V power to operate. With (6) 3528 type surface mount LED chips every 3.97" and 97 lumens per foot this strip will output a bright even glow of color changing, low power, and eco friendly lighting for years to come.

Ribbon Star Flex, RGB LED Strip Light - 24VDC
19.5" (0.5m) Sample
118" (3m) Roll

(3) 5.5 x 2.1mm Barrel Plugs with 12" Lead Wire

SKU: LA-SC-WJ-F-3     View Product Page
These 5.5 x 2.1mm barrel plugs have 12" - 22AWG lead wire attached. Each connector can be used for many projects to mate with a 5.5 x 2.1mm barrel jack connector. Sold in sets of 3. Please note this adapter is only rated for a maximum of 5A

(3) 5.5 x 2.1mm Barrel Plugs with 12" Lead Wire

5.5 x 2.1mm Barrel Jack to Plug Jumper Cable

SKU: LA-LU-BJ-1     View Product Page
Our 5.5 x 2.1mm barrel jack to barrel plug extension cable has total length of 59" using 22AWG wire. It can be used for many projects to connect, extend and create a quick disconnect from LED lights to a power source using 5.5 x 2.1mm barrel connectors. Please note this adapter is only rated for a maximum of 5A.

5.5 x 2.1mm Barrel Jack to Plug Jumper Cable
