SKU: LD-LF-25R1-WW

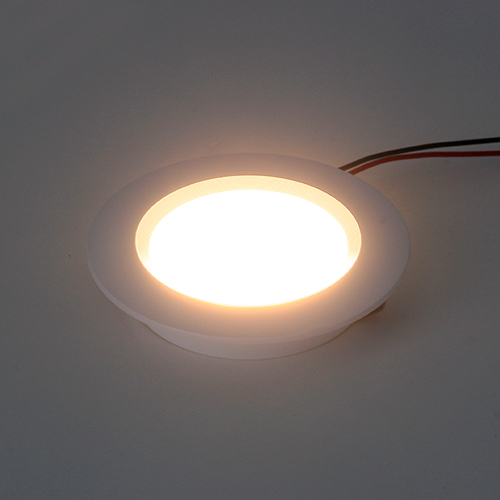

Our slim 12/24V PWM dimmable LED Puck Lights are an easy to use and aesthetically pleasing light fixture for cabinets, displays, shelves and more. Each light simply needs a cut hole of 2.36" Diameter (60mm) and minimal surface thickness to mount the 0.55" tall fixture. Consuming only 3 watts of power per light, these are a low cost and economical indoor lighting solution. Constructed of 15 pieces of 2835 size SMD LEDs, a white aluminum housing with a frosted plastic cover that blends the lights for a nice diffusion. A 7.5" wire lead comes off the backside of the fixture for connection to a 12/24V power source or PWM dimmer. The warm white output is in the 2700-3500 kelvin range with 200 lumens per fixture. Each light is CE, RoHS approved and has a 50,000 hour lifetime span.
Click For Product Data Sheet |
Calculate Electrical Load | |
* Power Supply capacity must be larger than minimum lighting load. |
SPECIFICATIONS | |
Model | 2.7" Round Slim LED Puck Light Warm White |
SKU | LD-LF-25R1-WW |
Dimensions | 2.68" Diameter x 0.55"H |
Cut Hole | 2.36" Diameter (60mm) |
Beam Angle | 120° |
Color Temperature | Warm White, 2700-3000K |
Lifespan | 50,000 Hours |
Input Voltage | 12 or 24VDC |
Watts | 3 Watts |
Lumens | 200 lm |
CRI | >80 |
Ambient Temperature | -4 ~ 113°F |
Certification | CE, RoHS |
Rating | IP52 |
Warranty Period | 2 Years |
2 Conductor DC Connection Wire Red/Black Pair - 22AWG
SKU: LA-SS-DC22 View Product Page
This is a 22 American Wire Gauge DC Connection wire with a Red/Black bonded pair. This connection wire is suitable for connecting LED lighting products using DC electrical Current.
LED Dimmer with Key Fob RF Remote, 12-24V 30A
SKU: LC-LF-1DIM View Product Page
Our small sized LED dimmer uses a uniquely paired key fob RF remote to dim and control your 12-24VDC constant voltage LED lights. The impressive 30 amp output allows for dimming control of larger circuits without the need of additional accessories. DC input and output wires can easily be secured using the screw down connectors. Dim up to 360 watts of lighting using 12 Volt products or 720 watts using 24 Volt products. Choose from 5-100% range of dimming levels using two simple arrow buttons on the remote. Our key fob led dimmer can be used to dim LED strip lights, LED modules, LED wall washers, or for dimming any one color common anode 12VDC or 24VDC LED products. Each RF Remote requires (2) 3V / CR2016 type batteries (included) and is paired with a unique RF frequency to prevent command crossover when using multiple units.
Mean Well Plug-in LED Power Supply 60W - 12VDC
SKU: PS-MW-60-12 View Product Page
A high quality Mean Well brand three prong Wall plug, 60 watt Constant Voltage LED Power Supply which is suitable for dry locations and is capable of supplying power to 54 - 1 watt led modules or lights. Use with any 100-240VAC input for a quick and easy installation of your 12VDC LED Strip Lights, LED Modules, and LED Lights. Comes with short circuit, overload, over voltage and over temperature shut off protection. It has a 5.5mm X 2.1mm Female Plug for the 12V connection. It can be used to connect LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other LED Lighting products. One 5.5 X 2.1mm Male Barrel Jack with screw down terminals included. UL, RoHs and CE approved.
Note: * Indicates a required field
- There are currently no reviews for this product
