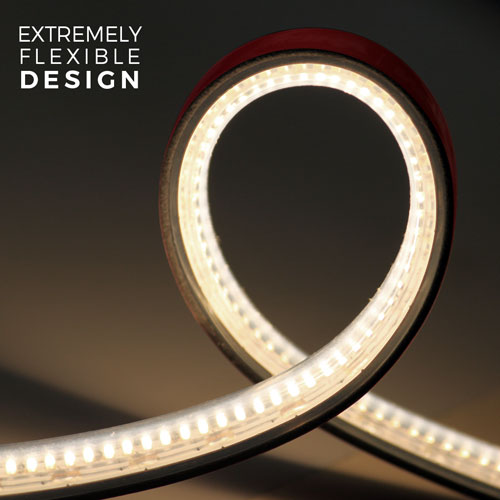

Our commercial grade UL Listed Ribbon Star, Warm White is an Ultra bright and dependable outdoor rated 24VDC waterproof LED Strip Light. With a 24VDC power rating this Strip Light is the brightest waterproof strip light that we sell. The silicon coating gives Ribbon Star Ultra an IP65 outdoor rating. Making it waterproof (non-submersible), dust and UV proof. Ribbon Star Ultra LED Strip Light provides a perfect light source for any indoor, outdoor and underwater lighting projects. The Strip Light can be cut every 0.8 inches and can be connected in series up to 20ft (6m) with no noticeable voltage drop. 8 SMD LEDs per 0.8 inches with a total of 1200 LEDs per 3m. At 4.9W per foot, a 3m roll would require at least a 49W, 24VDC power supply. This LED strip light is perfect for any outdoor or indoor lighting project. Use with water features, decks, trailers, yachts, boats, RV's, dog kennels, landscaping, business trim, pathway lighting, or any other situation that a fully outdoor proof LED Strip Light is needed. Comes with male and female connectors on each end, 3M VHB mounting tape, 10 mounting clips and 4 end caps. Requires a 24VDC Constant Voltage power source. 3500K Color Temperature. UL Listed for class2 luminaries and fixtures, RoHS and CE approved.
|Ultra 24V Strip Light Data Sheet|
|Ultra Waterproof 24V Connection Guide|
|LED Strip Light Comparison Guide|
|Wire to WP Strip Soldering Video|
|Electrical Load Calculator|
|Model||Ribbon Star Ultra 2, Waterproof Warm White, 118" (3m)|
|Dimensions||118" x 0.39" x 0.22"H|
|Connection Type||2 Wire (+/-)|
|LED Chip Type||2110|
|LED Quantity||8 SMDs per 0.8 inches|
|LEDs Per Strip||1200 SMD LEDs|
|Input Power||24VDC Constant Voltage|
|Watts||4.9W per foot|
|Rating||IP65 Water Resistant|
|Max Serial Connection||20 Feet|
|Certification||UL Listed, RoHS, CE|
|Warranty Period||2 Years|
|Downloads & Info|
|Click For Product Data Sheet|
|WP Strip Light Soldering Tutorial|
|Determining the Proper Power Supply Tutorial|
|Installing a PWM Dimmer Tutorial|
The SKU, Price and Specifiation for this product have changed. Please see the specifications table below for updated specs.
