Ribbon Star Ultra 2 Daylight White Strip Light Silicone WP CRI 90 2110 chip UL 24VDC 118"/3m NEW!

SKU: RL-SC-UT24-DW-T-10

Product Description

Our commercial grade UL Listed Ribbon Star, Daylight White is an Ultra bright and dependable outdoor rated 24VDC waterproof LED Strip Light. With a 24VDC power rating this Strip Light is the brightest waterproof strip light that we sell. The silicon coating gives Ribbon Star Ultra an IP65 outdoor rating. Making it water-resistant (non-submersible) and dust proof. Ribbon Star Ultra LED Strip Light provides a perfect light source for any indoor, outdoor and underwater lighting projects. The Strip Light can be cut every 0.8 inches and can be connected in series up to 20ft (6m) with no noticeable voltage drop. 8 SMD LEDs per 0.8 inches with a total of 1200 LEDs per 3m. At 4.9W per foot, a 3m roll would require at least a 49W, 24VDC power supply. This LED strip light is perfect for any outdoor or underwater lighting project. Use with water features, decks, trailers, yachts, boats, RV's, dog kennels, landscaping, business trim, pathway lighting, or any other situation that a fully outdoor proof LED Strip Light is needed. Comes with male and female connectors on each end, 3M VHB mounting tape, 10 mounting clips and 4 end caps. Requires a 24VDC Constant Voltage power source. 3800-4200K Color Temperature. UL Listed for class2 luminaries and fixtures, RoHS and CE approved.

Product Downloads
Click For Product Data Sheet
Ultra Waterproof 24V Connection Guide
LED Strip Light Comparison Guide
Wire to WP Strip Soldering Video
Calculate Electrical Load
Enter Length: ft
* 4.9 Watts =
0.00 Watts
* Power Supply capacity must be larger than minimum lighting load.
Product Specifications
SPECIFICATIONS
ModelRibbon Star Ultra 2, IP65 Daylight White, 118" (3m)
SKURL-SC-UT24-DW-T-10

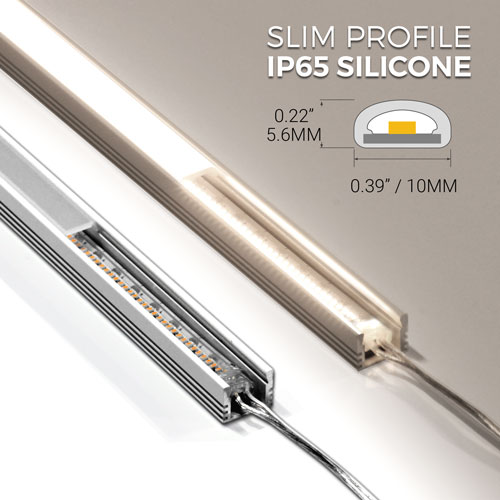

Dimensions118" x 0.39" x 0.22"H
Connection Type2 Wire (+/-)
LED Chip Type2110
LED Quantity8 SMDs per 0.8 inches
LEDs Per Strip1200 SMD LEDs
Input Power24VDC Constant Voltage
Watts4.9W per foot
Beam Angle120°
Lumens465 lm/ft
CRI>90
Kelvin3800-4200K
RatingIP65 Water Resistant
Operating Temp-4°~104°F
Max Serial Connection20 Feet
CertificationUL Listed, RoHS, CE
Warranty Period2 Years
Wiring Diagrams
Thumb
Thumb
Thumb
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

For B2B or Large Quantity Price Info Click Here

Basic Strip Light Layout

White WP Strip Setup
