Ribbon Star Ultra 2 White Strip Light Silicone WP CRI 90 2110 chip UL 24VDC 118"/3m NEW!

SKU: RL-SC-UT24-W-T-10

Product Description

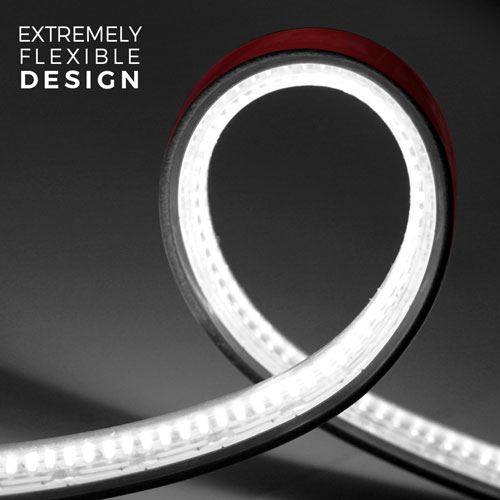

Our high end, commercial grade UL Listed Ribbon Star Ultra, White is an Ultra bright, weatherproof and IP65 rated 24VDC waterproof LED Strip Light. With a 24VDC power rating this Strip Light is the brightest waterproof strip light that we sell. The IP65 silicon coating makes this strip water resistant (non-submersible), dust and UV proof. Ribbon Star Ultra 24V LED Strip Light provides a perfect light source for any indoor, outdoor and underwater lighting projects. The Strip Light can be cut every 0.8 inches and can be connected in series up to 20ft. 8 SMD LEDs per 0.8 inches with a total of 1200 LEDs per 3m. At 4.9W per foot, a 3m roll would require at least a 49W, 24VDC power supply. This LED strip light is perfect for any, indoor, outdoor or underwater lighting project. Use with outdoor architectural features, decks, trailers, yachts, boats, RV's, dog kennels, landscaping, business trim, pathway lighting, or any other situation that a water resistant LED Strip Light is needed. Comes with male and female connectors on each end, 3M VHB mounting tape, 10 mounting clips and 4 end caps. Requires a 24VDC Constant Voltage power source. 5750-6250K Color Temperature. UL Listed for class2 luminaries and fixtures, RoHS and CE approved.

Product Downloads
Click For Product Data Sheet
Ultra Waterproof 24V Connection Guide
LED Strip Light Comparison Guide
Wire to WP Strip Soldering Video
Calculate Electrical Load
Enter Length: ft
* 4.9 Watts =
0.00 Watts
* Power Supply capacity must be larger than minimum lighting load.
Product Specifications
SPECIFICATIONS
ModelRibbon Star Ultra 2, Waterproof White, 118" (3m)
SKURL-SC-UT24-W-T-10

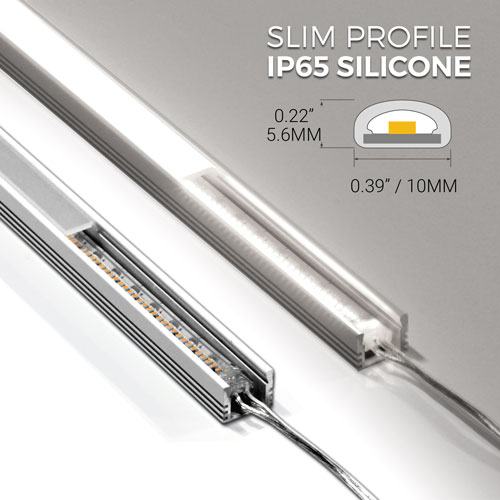

Dimensions118" x 0.39" x 0.22"H
Connection Type2 Wire (+/-)
LED Chip Type2110
LED Quantity8 SMDs per 0.8 inches
LEDs Per Strip1200 SMD LEDs
Input Power24VDC Constant Voltage
Watts4.9W per foot
Beam Angle120°
Lumens490 lm/ft
CRI>90
Kelvin5750-6250K
RatingIP65 Waterproof
Operating Temp-4°~104°F
Max Serial Connection20 Feet
CertificationUL Listed, RoHS, CE
Warranty Period2 Years
Wiring Diagrams
Thumb
Thumb
Thumb
Ribbon Star Ultra 2 Dimensions Ribbon Star Ultra Light Meter
Important Information

The SKU, Price and Specifiation for this product have changed. Please see the specifications table below for updated specs.

Buy
Discount
You Pay
6+
5% off
$109.25
13+
8% off
$105.80
31+
12% off
$101.20
61+
15% off
$97.75
100+
18% off
$94.30
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

For B2B or Large Quantity Price Info Click Here

Basic Strip Light Layout

White WP Strip Setup
