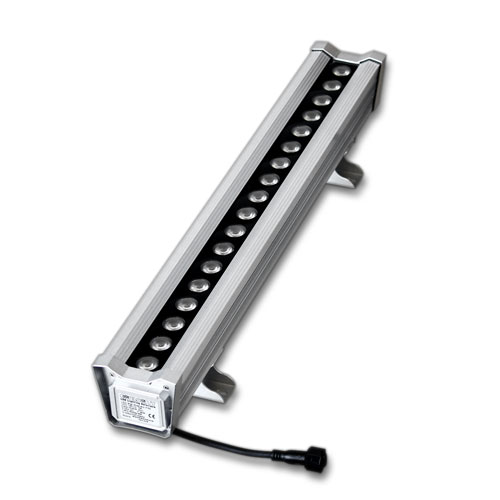

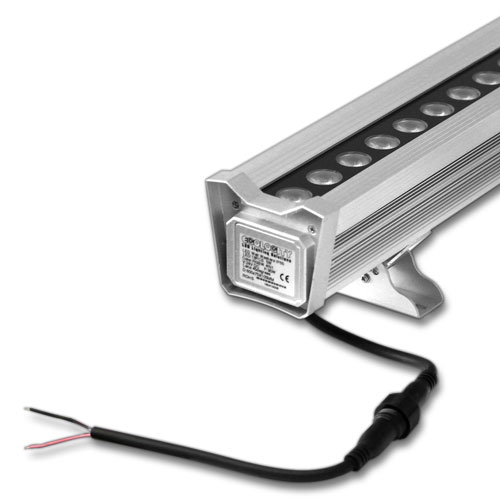

This Warm White LED Wall Washer is a 24" x 3.35" linear type light with 36W 24VDC rated power use. It has 18 warm white - 2.0 watt Epistar LEDs to produce bright and vivid lighting on walls, buildings, ceiling and signs. This light fixture can project light up to 100 feet. This light is encased in an IP65 water-resistant aluminum housing. Tempered glass and stainless fasteners give this light long lasting outdoor use. This light can be dimmed by any 24VDC Constant Voltage PWM Dimmer. We recommend no more than four 36 watt wall washers connected in a series. Attached male and female waterproof connection lead wires included. For easy connection of wall washers, power supplies and dimmers, use the many waterproof connectors wire options. UV proof, Non-submersible, RoHS and CE approved.
|Click For Product Data Sheet|
|Calculate Electrical Load|
|* Power Supply capacity must be larger than minimum lighting load.|
|Model||Bright Star 24" x 3.35" Warm White Linear Wall Washer - 36W 24VDC|

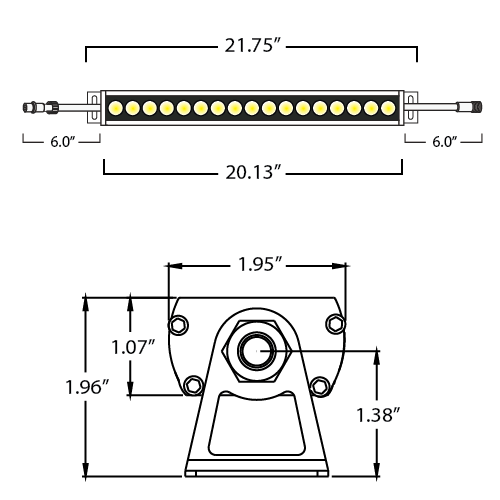

|Dimensions||23.62" x 3.35" x 4.13"H|
|Connection Type||2 Wire (+/-)|
|Max Serial Connection||4 Wall Washers|
|Warranty Period||2 Year|
This fixture is not compatible with dimmable power supplies. Call us at 775-636-6060 if you have any questions.
