Ribbon Star SlimLux, Warm White LED Strip Light - ETL 24VDC

SKU: RL-DX-SLL-WW-5M

Product Description

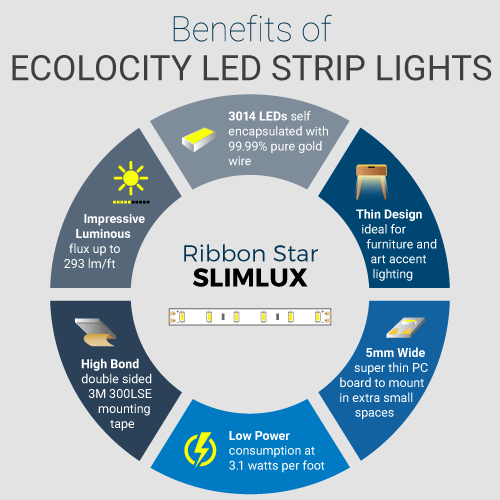

Our Ribbon Star SlimLux Warm White LED Strip Light is a bright and extremely thin 24VDC LED Strip Light boasting an astonishing 293 lumens per foot and only 5mm wide. This ETL Listed 197" (5m) LED ribbon can be cut every 1.97" and re-connected by soldering wires or by using our slim quick connectors (sold separately). Comes with double sided mounting tape on the back, for the best long-term mounting solution. 6 high output 3014 SMD LEDs per 1.97" for a total of 600 high output LEDs per 197" LED strip. At 3.05 watts per foot this strip requires at least 50W of 24VDC Constant Voltage power (2.08A) per 197" strip. This LED Ribbon strip is perfect for illuminating the smallest spaces where a standard strip may not fit. 2700-3000K Color Temperature, ETL Listed, RoHS and CE approved.

Product Downloads
Click For Product Data Sheet
SlimLux Connection Guide
LED Strip Light Comparison Guide
Click For Wire to Strip Soldering Video
Click For Overlap Strip Soldering Video
Calculate Electrical Load
Enter Length: ft
* 3.05 Watts =
0.00 Watts
* Power Supply capacity must be larger than minimum lighting load.
Product Specifications
SPECIFICATIONS
ModelRibbon Star SlimLux, Warm White 24VDC
SKURL-DX-SLL-WW-5M
Dimensions197"L x 0.20"W x 0.07"H
Connection Type2 Wire (+/-)
LED Chip Type3014
LED Quanity6 LEDs per 1.97"
LEDs Per Strip600 SMD LEDs
Input Power24VDC Constant Voltage
Watts3.05W per foot
Beam Angle120°
Lumens293 lm/ft
CRI>80
Kelvin2700-3000K
RatingIP20 Indoor
Operating Temp-4°~113°F
Max Serial Connection30 Feet
Product Lifetime50,000 Hours
CertificationETL Listed, RoHS, CE
Warranty Period2 Years
Wiring Diagrams
Thumb
Thumb
Thumb
Ribbon Star SlimLux Dimensions Ribbon Star SlimLux Light Meter
3.28ft (1m) Custom Length
SKU: RL-DX-SLL-WW-1M
$24.99
16.4ft (5m) Full Reel
SKU: RL-DX-SLL-WW-5M
$109.99
Buy
Discount
You Pay
6+
5% off
$104.50
13+
8% off
$101.20
31+
12% off
$96.80
61+
15% off
$93.50
100+
18% off
$90.20
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

For B2B or Large Quantity Price Info Click Here

Basic Strip Light Layout

White Strip Setup
