SKU: RL-DX-SLL-W-5M

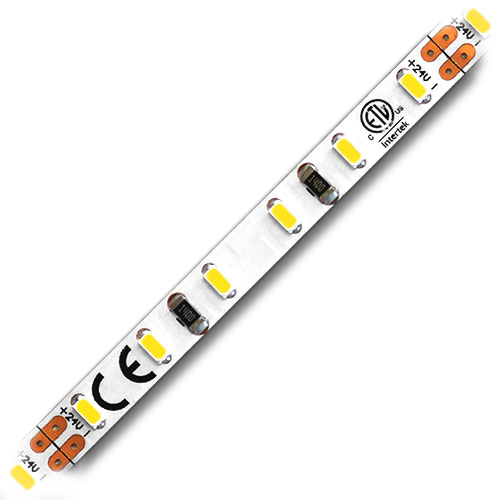

Our Ribbon Star SlimLux White LED Strip Light is a bright and extremely thin 24VDC LED Strip Light boasting an astonishing 293 lumens per foot and only 5mm wide. This ETL Listed 197" (5m) LED ribbon can be cut every 1.97" and re-connected by soldering wires or by using our slim quick connectors (sold separately). Comes with double sided mounting tape on the back, for the best long-term mounting solution. 6 high output 3014 SMD LEDs per 1.97" for a total of 600 high output LEDs per 197" LED strip. At 3.05 watts per foot this strip requires at least 50W of 24VDC Constant Voltage power (2.08A) per 197" strip. This LED Ribbon strip is perfect for illuminating the smallest spaces where a standard strip may not fit. 5700-6500K Color Temperature, ETL Listed, RoHS and CE approved.
| Click For Product Data Sheet |
| SlimLux Connection Guide |
| LED Strip Light Comparison Guide |
| Click For Wire to Strip Soldering Video |
| Click For Overlap Strip Soldering Video |
| Calculate Electrical Load | |
| * Power Supply capacity must be larger than minimum lighting load. | |
| SPECIFICATIONS | |
| Model | Ribbon Star SlimLux, White 24VDC |
| SKU | RL-DX-SLL-W-5M |
| Dimensions | 197"L x 0.20"W x 0.07"H |
| Connection Type | 2 Wire (+/-) |
| LED Chip Type | 3014 |
| LED Quanity | 6 LEDs per 1.97" |
| LEDs Per Strip | 600 SMD LEDs |
| Input Power | 24VDC Constant Voltage |
| Watts | 3.05W per foot |
| Beam Angle | 120° |
| Lumens | 293 lm/ft |
| CRI | >80 |
| Kelvin | 5700-6500K |
| Rating | IP20 Indoor |
| Operating Temp | -4°~113°F |
| Max Serial Connection | 30 Feet |
| Product Lifetime | 50,000 Hours |
| Certification | ETL Listed, RoHS, CE |
| Warranty Period | 2 Years |
| Wiring Diagrams |
 |
 |
 |
