SKU: RL-DX-DTW

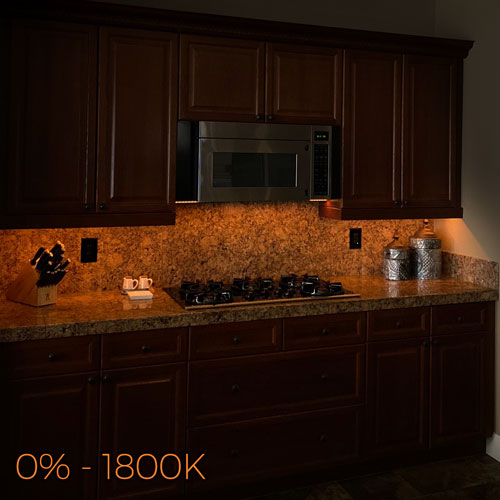

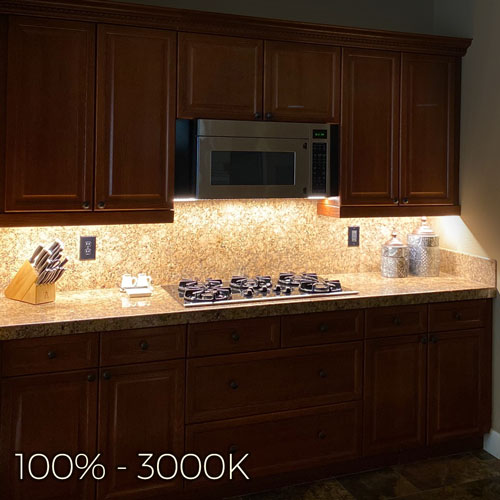

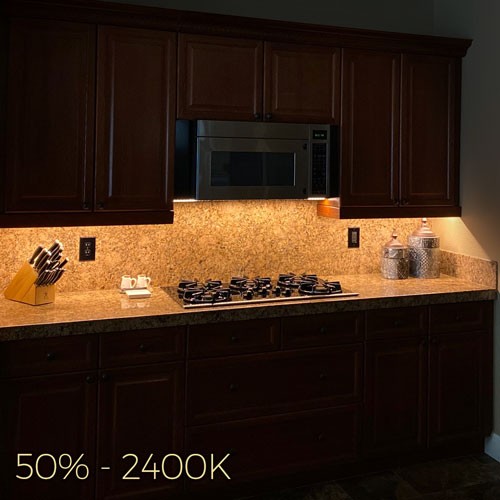

As human beings we are inherently adapted to the changing timeline of light throughout the day. From natural sun light mid-day, to the soothing glow of a sunset, and the warm calming tone of candlelight at night; our bodies react differently to each. Dim to warm LED strip light technology was produced to mimic that, what we have been scientifically conditioned to since the beginning of time. At full brightness the strip is bright and higher kelvin temperature, similar to sunlight, great for task lighting and active environments. As you dim the light with any PWM dimmer or dimmable power supply, the light starts to dim but the color temperature also lowers and becomes warmer, perfect for relaxing and entertaining. At the lowest level a super warm glow resembles the light output of a candlelight, ideal for winding down preparing the body for rest. This strip light is ideal for bedrooms, hotels, bars, and lounges. Each roll is 16.4ft (5m) in length and can be cut and re-connected every 3.94" (10cm). 24VDC power and 5.85 watts per foot of strip is required for powering, dimming can be achieved using any PWM dimmer or dimmable power supply.
Dim to Warm Strip Light Specs |
Wire to Strip Soldering Video |
Overlap Strip Soldering Video |
Calculate Electrical Load | |
* Power Supply capacity must be larger than minimum lighting load. |
SPECIFICATIONS | |
Model | Ribbon Star Dim to Warm LED Strip Lights - 24VDC |
SKU | RL-DX-DTW-5M |
Dimensions | 16.4'L x 0.39"W x 0.05"H |
Connection Type | 2 Wire (+/-) |
LED Chip Type | 2835 |
LED Quantity | 12 SMDs per 3.94 inch |
LEDs Per Strip | 600 SMD LEDs |
Input Power | 24VDC Constant Voltage |
Watts | 5.85W per foot |
Beam Angle | 120° |
Lumens | 522 lm/ft |
CRI | >80 |
Kelvin | 1800-3000K |
Rating | IP20 Indoor |
Operating Temp | -4°~113°F |
Max Serial Connection | 20 Feet |
Certification | ETL Listed, RoHS, CE |
Lifetime Hours | 50,000 Hours |
Warranty Period | 2 Years |
For B2B or Large Quantity Price Info Click Here
Note: * Indicates a required field
Pretty good
First off the tape on the back of these led strips seems to be better than other ones I've used in the past. Overall fairly happy with the product, however the full brightness is quite cool. I'd prefer a closer to daylight color but the warm to dim works fairly well.
Dec 20, 2022 | Nate
Love It
I used this in my childs bedroom. The brightness is great at full brightness for play time, dimmed down a bit for reading and relaxing time, dimmed to lowest brightness for bedtime and it works fantastic!
Dec 20, 2022 | James
