Ribbon Star Ultra 2, White LED Strip Light CRI 90 - UL 12VDC NEW!

SKU: RL-SC-UT12-W-10

Product Description

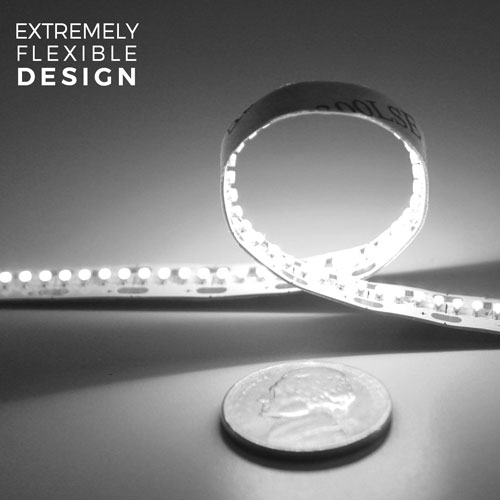

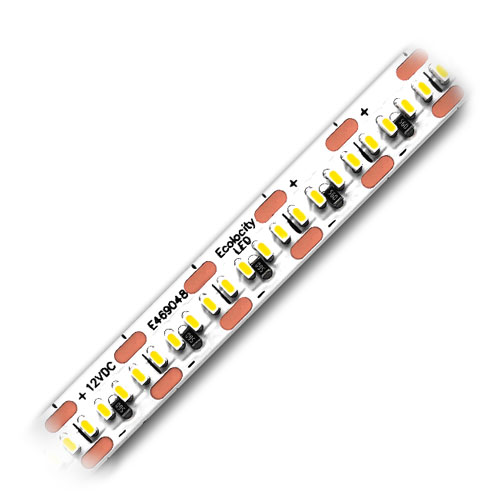

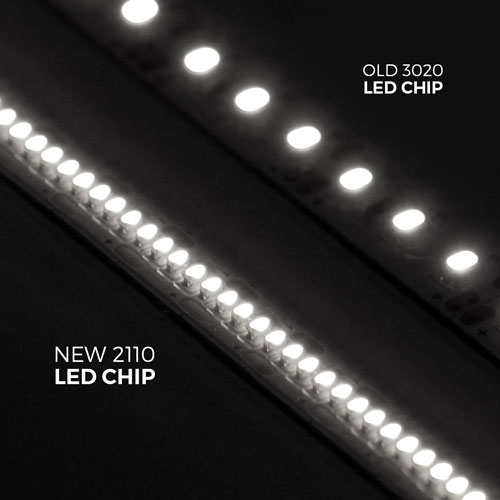

Version 2 of our Ribbon Star Ultra White LED Strip has a smaller and brighter PC design with extremely durable and flexible 2110 size CRI 90+ LED chip. This new chip can be cut to fit any size and outputs extremely bright, dot free, high CRI color popping illumination. 1200 LEDs per Strip makes Ultra 2.0 the ideal choice for pairing with our aluminum channels to build custom lighting fixtures for upscale residential and commercial uses. Embed into drywall, use under cabinets, light up a display, the applications are endless. Each roll of Strip Light has heavy duty 3M™ mounting tape on the back, for the best long-term mounting solution. Each foot of strip light consumes 6.1 watts of 12VDC power. An adequate 12VDC Constant Voltage power source is required. One bin keeps the 5750-6250K color temperature consistent from order to order. We recommended that you mount this to steel or aluminum for a good heat sink. UL Listed for class2 luminaries and fixtures, CE and RoHS compliant.

Product Downloads
Ultra 12V Strip Light Data Sheet
Ultra 12V Connection Guide
LED Strip Light Comparison Guide
Click For Wire to Strip Soldering Video
Click For Overlap Strip Soldering Video
Click For Electrical Load Calculator
Enter Length: ft
* 6.1 Watts =
0.00 Watts
Product Specifications
SPECIFICATIONS
ModelRibbon Star Ultra 2, White, 118" (3m)
SKURL-SC-UT12-W-10
Dimensions118"L x 0.32"W x 0.07"H
Connection Type2 Wire (+/-)
LED Chip Type2110
LED Quantity4 SMDs per 0.4 inch
LEDs Per Strip1200 SMD LEDs
Input Power12VDC Constant Voltage
Watts6.1W per foot
Beam Angle120°
Lumens610 lm/ft
CRI>90
Kelvin5750-6250K
RatingIP20 Indoor
Operating Temp-4°~113°F
Max Serial Connection15 Feet
CertificationUL Listed, RoHS, CE
Warranty Period2 Years
Wiring Diagrams
Thumb
Thumb
Thumb
Ribbon Star Ultra 2.0 Dimensions Ribbon Star Ultra 2 Light Meter
Important Information

The SKU, Price and Specifiation for this product have changed. Please see the specifications table below for updated specs.

19.5" (0.5m) Sample
$18.99
118" (3m) Roll
$99.99
Buy
Discount
You Pay
6+
5% off
$95.00
13+
8% off
$92.00
31+
12% off
$88.00
61+
15% off
$85.00
100+
18% off
$82.00
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

For B2B or Large Quantity Price Info Click Here

MICRO Aluminum Extrusions - .2" Deep

SKU: EX-KL1-2     View Product Page

Showing 1 Meter Lengths Show 2 Meter Lengths
1 Meter Lengths are stocked in our Warehouse, have more discount and ship the same business day.
1M Non-Anodized
1M Non-Anodized
SKU: EX-KL1-2-1M

$9.49

Choose Cover Type:
Indoor
Outdoor
$9.49
1M Anodized
1M Anodized
SKU: EX-KL1-2A-1M

$11.49

Choose Cover Type:
Indoor
Outdoor
$11.49
1M Black-Anodized
1M Black-Anodized
SKU: EX-KL1-2B-1M

$12.49

Choose Cover Type:
Indoor
Outdoor
$12.49
1M White Lacquered
1M White Lacquered
SKU: EX-KL1-2W-1M

$12.49

Choose Cover Type:
Indoor
Outdoor
$12.49
Show 1 Meter Lengths Showing 2 Meter Lengths
Due to increases in shipping costs 2 Meter Lengths are currently unavailable for order online. Please call us for a detailed price quote on any 2 Meter Lengths.

Mean Well LED Power Supply, 75W - 12VDC

SKU: PS-MW-75-12     View Product Page
A Mean Well 75W 12VDC LED Power Supply / Transformer, with an AC input of 100-240VAC and 12VDC output through one terminal. Simple to use screw down style terminals make for an easy and secure connection. Built in short circuit, overload and over voltage protection gaurds the unit from any improper use. It can be used to connect 12VDC LED Modules, LED Lights, LED Light Ribbons, RGB LED lighting and other 12VDC Constant Voltage LED Lighting products. UL Recognized, RoHs and CE approved. Can connect up to 70 one watt led lights. Only install face up or in a manner that the cooling grate faces upwards with sufficient breathing space.

Mean Well LED Power Supply, 75W - 12VDC

Mini Monochrome LED Sync Dimmer, 5-24VDC 20A

SKU: LC-LT-DIM4-RT-KIT     View Product Page
Our Mini LED Sync Dimmer uses the latest technologies to deliver functional LED dimming control in a small and concealable package. The touch sensitive Monochrome RF Remote offers smooth 5-100% dimming with 50% and 100% quick control buttons. Using state of the art radio frequency control, the user can pair unlimited Mini Remote Controls to a single Mini Receiver. Likewise, each remote can control an unlimited amount of receivers in the given 30ft RF control range. At 5A x 4CH the Mini Receiver can handle a maximum load of 240W at 12VDC or 480W at 24VDC. With it's small size and unique control capabilities this LED Dimmer can be used in any type of LED lighting application.

Mini Monochrome LED Sync Dimmer, 5-24VDC 20A
