Ribbon Star, RGB 180 LED Strip Light - UL 12VDC

5 star rating

SKU: RL-SC-RS-RGB1-10

Product Description

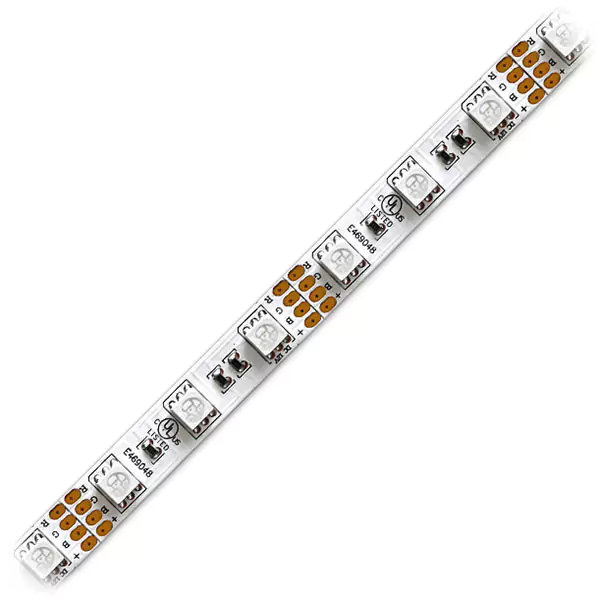

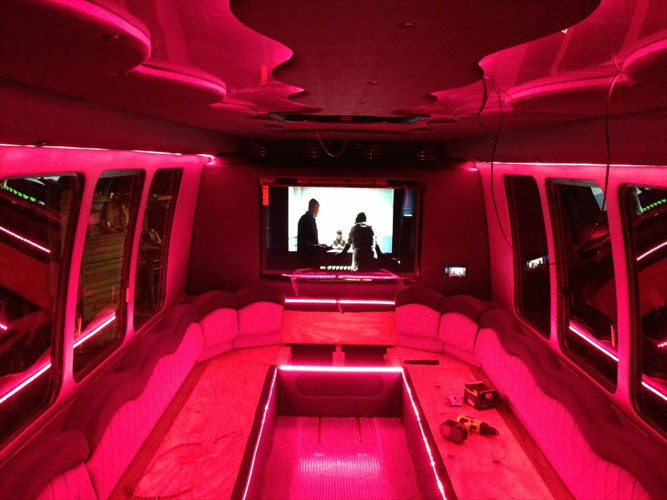

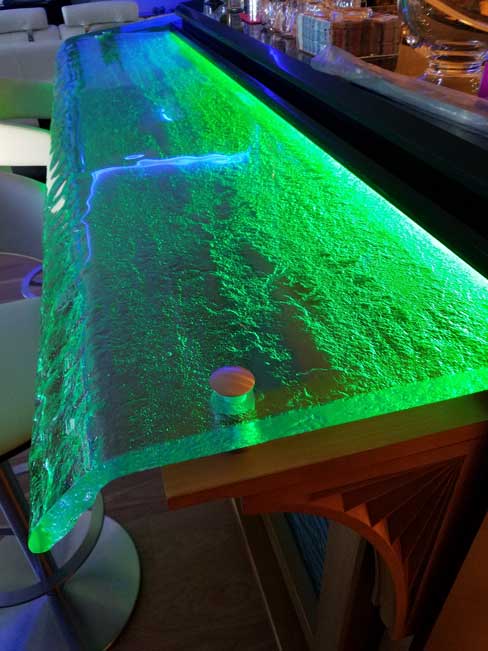

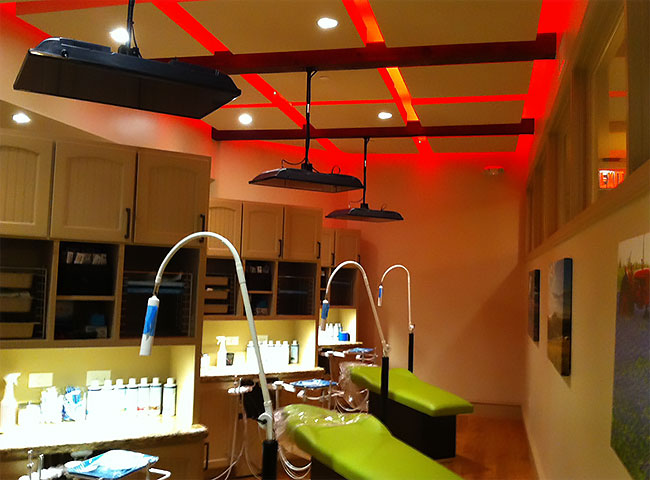

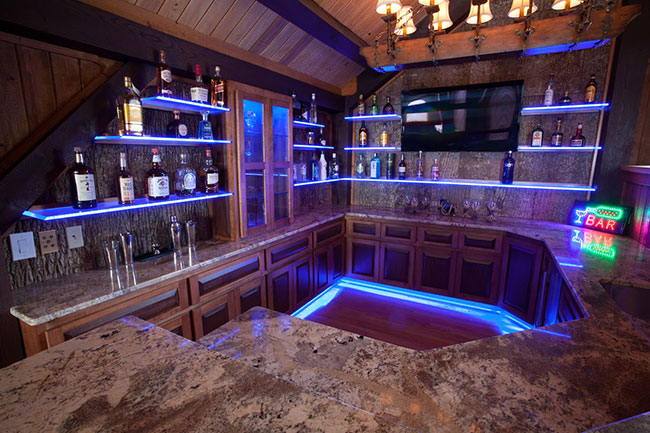

These UL Listed Ribbon Star RGB LED strips have super bright 3 in 1 RGB SMD LEDs on board and can produce 16 million shades of brilliant color. There are 3 LEDs for every 2 inches. This 118" (3m) LED strip can be cut every 2 inches and has many quick connnection options, for easy connection and use. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution. 43W of constant voltage 12VDC power needed for this 118" strip (4.3W per foot). This RBG LED Light strip can be used for entertainment lighting, bars, casino lights, full color cove lights, RGB backlighting and in theater sets; Comes with two quick connectors. See link below for demonstration video. UL Listed for class 2 luminaries and fixtures, RoHS and CE approved.

Product Downloads
Click For Product Data Sheet
RGB 180 12VDC Connection Guide
LED Strip Light Comparison Guide
Click For Wire to Strip Soldering Video
Click For Overlap Strip Soldering Video
Calculate Electrical Load
Enter Length: ft
* 4.3 Watts =
0.00 Watts
* Power Supply capacity must be larger than minimum lighting load.
Product Specifications
SPECIFICATIONS
ModelRibbon Star RGB 180, 118" (3m)
SKURL-SC-RS-RGB1-10
Dimensions118"L x 0.40"W x 0.07"H
Connection Type4 Wire RGB(+)
LED Chip Type5050
LED Quanity3 SMDs per 2 inches
LEDs Per Strip180 SMD LEDs
Input Power12VDC Constant Voltage
Watts4.30W per foot
Beam Angle120°
Lumens152 lm/ft
RatingIP20 Indoor
Operating Temp-4°~113°F
Max Serial Connection20 Feet
CertificationUL Listed, RoHS, CE
Product Lifetime50,000 Hours
Warranty Period2 Years
Wiring Diagrams
Dimmer
Amplifier
Large Load
Ribbon Star RGB180 Dimensions Ribbon Star RGB180 Light Meter
19.5" (0.5m) Sample
$17.99
118" (3m) Roll
$79.99
Buy
Discount
You Pay
6+
5% off
$76.00
13+
8% off
$73.60
31+
12% off
$70.40
61+
15% off
$68.00
100+
18% off
$65.60
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

For B2B or Large Quantity Price Info Click Here

Strip Bundle

Compatible Products

Product Reviews

Write a Review

Note: * Indicates a required field

Review Information

(email address will not be displayed)
Your Rating
reCAPTCHA Verification

Owner / Operator Retail Store


Installed these leds in the alcove in our crown molding. Looks amazing and very bright like we expected.

Jun 12, 2020 | Jon
