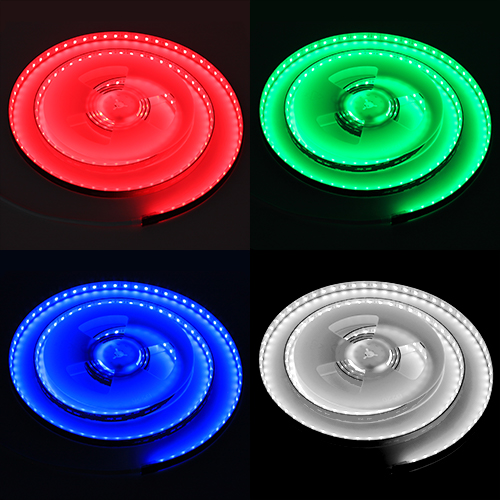

Ribbon Star 50/50, 4 in 1 Waterproof RGBW LED Strip Light - ETL 24VDC - 118" (3m)

SKU: RL-DX-4IN1-W-T-3M

Product Description

Our 4in1 RGBW Waterproof strip light provides color changing plus single color lighting in a waterproof and customizable package. The IP67 rated strip can be cut and re-connected every 3.93" (10cm) to conform to any indoor or outdoor layout. The 4in1 chip provides denser light dispersion with color changing options and the addition of a 5700-6500K bright white output. Each roll includes a 3M long strip light in encapsulated hollow silicon housing with an 11" lead to bare wire on each end. A common anode 5 wire RGBW color controller or DMX decoder and constant voltage 24VDC power source is required to operate. Each strip light is ETL listed for class 2 circuits, RoHS and CE approved.

Product Downloads
Important Information

This Strip Light is 13.5mm wide and will only fit inside of our wider Aluminum Channels, to see compatible channels Click Here

Click For Product Data Sheet
Waterproof RGBW 4in1 Connection Guide
LED Strip Light Comparison Guide
Calculate Electrical Load
Enter Length: ft
* 5.1 Watts =
0.00 Watts
* Power Supply capacity must be larger than minimum lighting load.
Product Specifications
SPECIFICATIONS
ModelRibbon Star 50/50, 4 in 1 RGBW Waterproof Strip Light - 118" (3m)
SKURL-DX-4IN1-W-T-3M
Dimensions118" x 0.53" x 0.23"H
Connection Type5 Wire RGBW(+)
LED Chip Type5050
LED Quantity6 SMDs per 4 inches
LEDs Per Strip180 SMD LEDs
Input Power24VDC Constant Voltage
Watts5.1W per foot
Beam Angle120°
Lumens275 lm/ft
WavelengthR: 620-630nm
G: 515-525nm
B: 460-470nm
Kelvin5,700-6,500K
RatingIP67
Operating Temp-4°~113°F
Max Serial Connection30 Feet
CertificationETL Listed, RoHS, CE
Product Lifetime50,000 Hours
Warranty Period2 Years
Wiring Diagrams
Dimmer
Amplifier
Large Load

Basic RGBW Strip Light Layout

RGBW WP Strip Setup
