SKU: RL-DX-4IN1-WW-T-3M

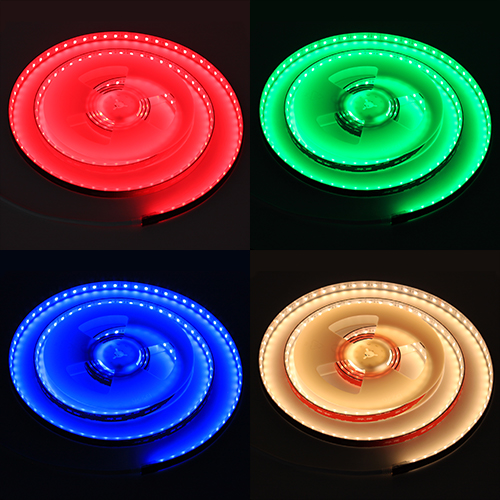

Our 4in1 RGBW Waterproof strip light provides color changing plus single color lighting in a waterproof and customizable package. The IP67 rated strip can be cut and re-connected every 3.93" (10cm) to conform to any indoor or outdoor layout. The 4in1 chip provides denser light dispersion with color changing options and the addition of a 2900-3200K warm white output. Each roll includes a 3M long strip light in encapsulated hollow silicon housing with an 11" lead to bare wire on each end. A common anode 5 wire RGBW color controller or DMX decoder and constant voltage 24VDC power source is required to operate. Each strip light is ETL listed for class 2 circuits, RoHS and CE approved.
This Strip Light is 13.5mm wide and will only fit inside of our wider Aluminum Channels, to see compatible channels Click Here
Click For Product Data Sheet |
Waterproof RGBW 4in1 Connection Guide |
LED Strip Light Comparison Guide |
Calculate Electrical Load | |
* Power Supply capacity must be larger than minimum lighting load. |
SPECIFICATIONS | |
Model | Ribbon Star 50/50, 4 in 1 RGBWW Waterproof Strip Light - 118" (3m) |
SKU | RL-DX-4IN1-WW-T-3M |
Dimensions | 118" x 0.53" x 0.23"H |
Connection Type | 5 Wire RGBW(+) |
LED Chip Type | 5050 |
LED Quantity | 6 SMDs per 4 inches |
LEDs Per Strip | 180 SMD LEDs |
Input Power | 24VDC Constant Voltage |
Watts | 5.1W per foot |
Beam Angle | 120° |
Lumens | 220 lm/ft |
Wavelength | R: 620-630nm G: 515-525nm B: 460-470nm |
Kelvin | 2,900-3,200K |
Rating | IP67 |
Operating Temp | -4°~113°F |
Max Serial Connection | 30 Feet |
Certification | ETL Listed, RoHS, CE |
Product Lifetime | 50,000 Hours |
Warranty Period | 2 Years |
For B2B or Large Quantity Price Info Click Here
Note: * Indicates a required field
Architect
Great lights, but since there is no ribbon connector the install of these becomes very problematic.
Feb 10, 2020 | Anthony Allegrone
not dense
If you're using the SILER extrusion with frosted diffuser (which is almost the only option given how wide this strip is), you will see dots prominently through the diffuser. The LEDs on this one are just not very dense. Otherwise seems fine.
Jun 7, 2020 | Daniel
Ecolocity LED Responded:
Hi Daniel, thanks for your input and I understand what you are saying. Unfortunately this is the most dense RGBW 4in1 strip available with waterproof coating. The higher density strips are not available in waterproof at this time due to heat issues. However, if you were to use a deeper channel, such as our KL3 Lipod, 1" deep channel with extra frosted cover, you can achieve a line of light effect using this strip light.
