Ribbon Star Max, Waterproof Red LED Strip Light - UL 12VDC - 118" (3m)

SKU: RL-SC-RSM-T-R-10

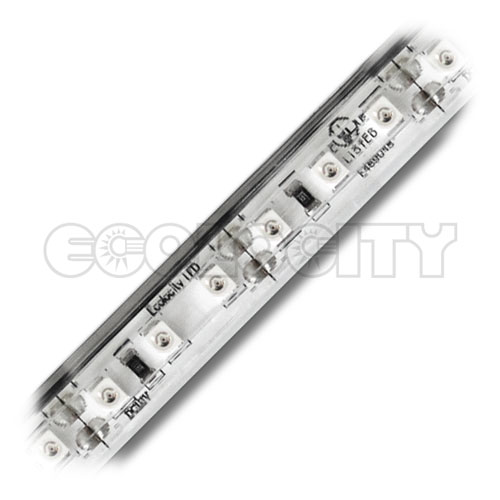

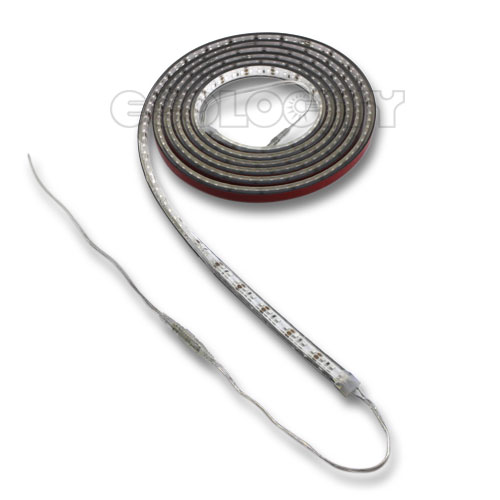

Product Description

Our commercial grade UL Listed Ribbon Star Max Waterproof flexible LED ribbon is a perfect solution for backlight and ambient light applications. The Waterproof Ribbon Star Max LED Ribbon is encased in a durable waterproof silicon coating for an IP67 rating. This 118" (3 meters, approximately 10 Feet) ribbon can be cut every one inch and has many quick connection options for easy connection. Ribbon comes with 3M™ VHB™ mounting tape on the back, for the best long-term mounting solution. Each roll comes with 10 clear plastic screw down holders, 4 closed end caps, 4 end caps with holes for wiring, and a waterproof connector at each end. Three (3) SMD LEDs per one inch, 2.92W per foot of Constant Voltage DC power required for this strip of light. Can be used for coves lighting, toe kicks, under cabinet, backlighting, crown molding and many more applications. This LED Strip is UL Listed for class 2 circuits, RoHS and CE approved.

Product Downloads
Click for Product Data Sheet
Max Waterproof Connection Guide
LED Strip Light Comparison Guide
Wire to WP Strip Soldering Video
Calculate Electrical Load
Enter Length: ft
* 2.92 Watts =
0.00 Watts
* Power Supply capacity must be larger than minimum lighting load.
Product Specifications
SPECIFICATIONS
ModelRibbon Star Max Waterproof, Red, 118" (3m)
SKURL-SC-RSM-T-R-10
Dimensions118"L x 0.48"W x 0.28"H
Connection Type2 Wire (+/-)
LED Chip Type3528
LED Quantity3 SMDs per 1 inch
LEDs Per Strip360 SMD LEDs
Input Power12VDC Constant Voltage
Watts2.92W per foot
Beam Angle120°
RatingIP67 Waterproof
Operating Temp-4°~104°F
Max Serial Connection30 Feet
CertificationUL Listed, RoHS, CE
Product Lifetime50,000 Hours
Warranty Period2 Years
Wiring Diagrams
Thumb
Thumb
Thumb
Reveal - Click the arrow or text to reveal answers.
CSR - Customer service representatives.
Purchaser - Verified purchasers of this product.

For B2B or Large Quantity Price Info Click Here

Basic Strip Light Layout

White WP Strip Setup
