SKU: RL-DX-TL-WW-3M

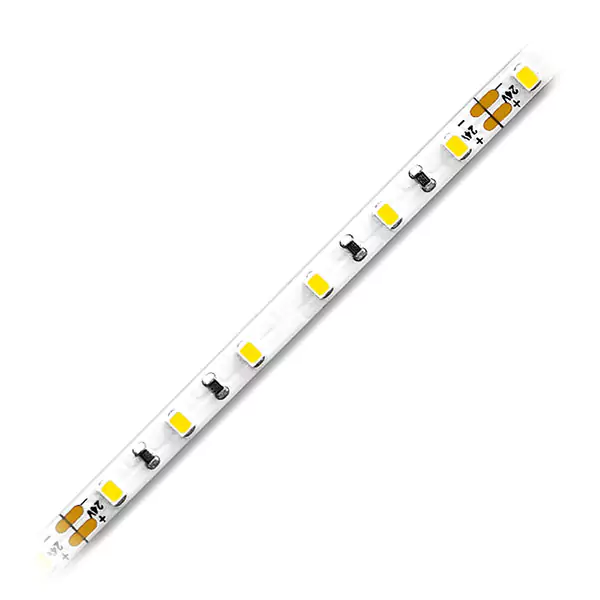

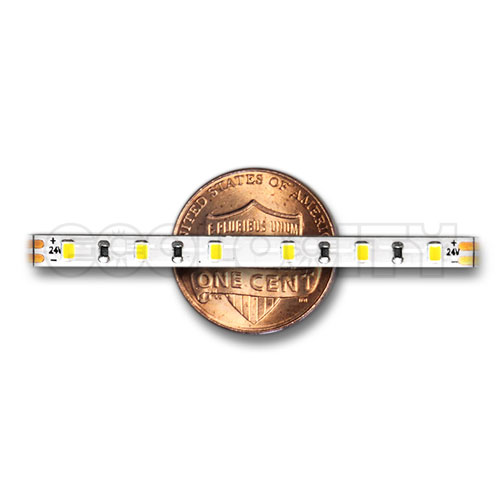

Our 24VDC Ribbon Star ThinLux Warm White LED Strip Light measures only 3.5mm wide (0.14") and outputs an impressive 366 lumens per foot. The thin and low profile makes this strip light easy to hide for projects with limited mounting space, ideal for for furniture designers, cabinet makers, costume designers, stage designers, sculptors and architectural designers. The ThinLux LED Strip requires 24VDC constant voltage power and consumes 4.4W of power per foot to operate. All of our Ribbon Star strips can be dimmed by a compatible low voltage DC PWM type dimmer or by a LVM dimmable power supply. With cut lines every 1.97" you can easily cut and reconnect custom lighting lengths by soldering wires to the copper pads between the cut marks. 3M double sided adhesive on the back of the strip light provides a permanent mounting solution to any clean, dry surface. Please note this strip light does not have any quick connectors available and must be soldered to cut and connect. Visit our soldering tutorial if you need some pointers on the best strip light soldering techniques. This LED strip light is ETL listed, RoHS and CE approved.
Click For Product Data Sheet |
ThinLux Connection Guide |
LED Strip Light Comparison Guide |
Click For Wire to Strip Soldering Video |
Click For Overlap Strip Soldering Video |
Calculate Electrical Load | |
* Power Supply capacity must be larger than minimum lighting load. |
SPECIFICATIONS | |
Model | Ribbon Star ThinLux, Warm White 24VDC |
SKU | RL-DX-TL-WW-3M |
Dimensions | 118"L x 0.14"W x 0.04"H |
Connection Type | 2 Wire (+/-) |
LED Chip Type | 2016 |
LED Quanity | 6 LEDs per 1.97" |
LEDs Per Strip | 360 SMD LEDs |
Input Power | 24VDC Constant Voltage |
Watts | 4.4W per foot |
Beam Angle | 120° |
Lumens | 366 lm/ft |
CRI | >80 |
Kelvin | 2700-3000K |
Rating | IP20 Indoor |
Operating Temp | -4°~113°F |
Max Serial Connection | 20 Feet |
Product Lifetime | 30,000 Hours |
Certification | ETL Listed, RoHS, CE |
Warranty Period | 2 Years |
