Ribbon Star COB LED Strip Lights - 528 LEDs per Meter - ETL 24VDC - IP20
Ribbon Star COB LED Strip Lights - 528 LEDs per Meter - ETL 24VDC - IP20
Ribbon Star COB LED Strip Lights - 528 LEDs per Meter - ETL 24VDC - IP20
Ribbon Star COB LED Strip Lights - 528 LEDs per Meter - ETL 24VDC - IP20
Our new COB series strip lights use the latest chip on board (COB) LED technology to create dot free linear illumination with no visible hotspots. Cob strips fit into our most popular low profile MICRO channel providing dot free linear lighting for applications such as under counter and toe kick lighting; where spotty reflection on shiny surfaces is undesirable. Choose from mid and high power brightness levels and three CRI 90+ color temperature options. Each strip requires 24VDC input and can be dimmed by dimmable power supply or PWM dimmer. Each strip is sold by the meter or full 5 meter reel.
| SKU | Color | Kelvin | Lumens | Watts | Voltage | CRI | Beam Angle | Rating | Max Serial |
|---|---|---|---|---|---|---|---|---|---|

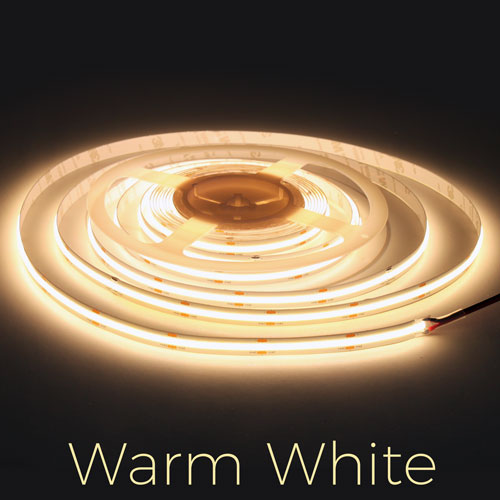

| RL-DX-RSC1-WW-5M | Warm White | 3000K | 305 lm/ft | 3.05 W/ft | 24VDC | >90 | 140° | IP20 | 30ft |

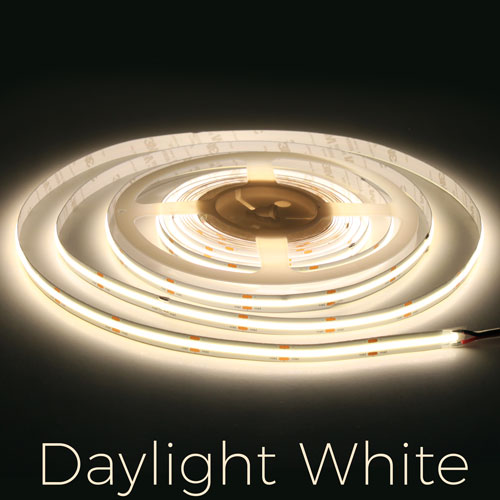

| RL-DX-RSC1-DW-5M | Daylight White | 4000K | 329 lm/ft | ||||||

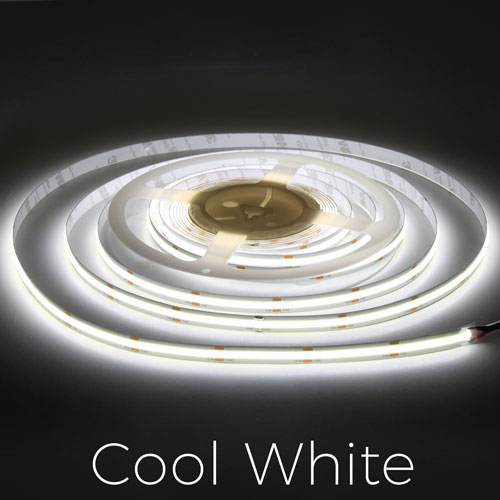

| RL-DX-RSC1-W-5M | Cool White | 6000K | 351 lm/ft | ||||||
| RL-DX-RSC3-WW-5M | Warm White | 3000K | 549 lm/ft | 5.49 W/ft | 20ft | ||||
| RL-DX-RSC3-DW-5M | Daylight White | 4000K | 598 lm/ft | ||||||
| RL-DX-RSC3-W-5M | Cool White | 6000K | 622 lm/ft |
| Ribbon Star COB Single Color Specification Sheet |
| Learn How to Solder Wire to Strip Lights |
| Learn How to Solder Two Strip Lights Together |
Note: * Indicates a required field
Awesome
Used this on the mirror face of a custom built bathroom cabinet. The dot free effect is really cool and aloud me to easily recess it into 3/4" hardwood.
Jan 16, 2023 | Billy
