Ribbon Star Flex, White LED Strip Light - 12VDC

SKU: RL-SC-RSF-W-10

Product Description

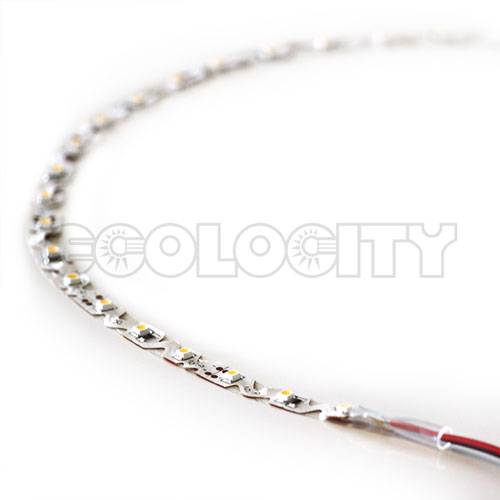

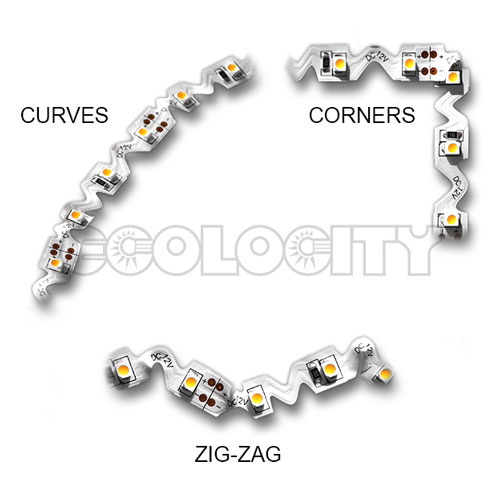

This new style of Flexible LED Strip Lights have a specially designed PC board that is made to bend, twist, and fold, to create custom curves, corners, and zig-zags while still adhering to your flat surface. This 16.4'(5m) Light strip can be cut every 1.97 inches and has many quick connection options for easy connection and use. Comes with 3M™ mounting tape on the back, for the best long-term mounting solution to a clean, dry, and smooth surface. 3 SMD LEDs per 1.97" (5cm) with a total of 300 LEDs per 5 meter roll. This strip light has a power output of 1.46 watts per foot, requiring a 24 watt 12VDC power source for 16.4ft. This LED strip light can be bent around curves and folded at angles to create custom letters, designs, or simply wrap a curved or oddly shaped surface or object. Comes with two quick connectors. Requires a 12VDC Constant Voltage power source, 6000-6500K color temperature, RoHS and CE approved.

Product Downloads
Click For Product Data Sheet
Flex Connection Guide
LED Strip Light Comparison Guide
Click For Wire to Strip Soldering Video
Click For Overlap Strip Soldering Video
Calculate Electrical Load
Enter Length: ft
* 1.46 Watts =
0.00 Watts
* Power Supply capacity must be larger than minimum lighting load.
Product Specifications
SPECIFICATIONS
ModelRibbon Star Flex, White - 16.4' (5m)
SKURL-SC-RSF-W-10
Dimensions197"L x 0.33"W x 0.05"H
Connection Type2 Wire (+/-)
LED Chip Type3528
LED Quantity3 SMD LEDs per 1.97 inches
LEDs Per Strip300 SMD LEDs
Input Power12VDC Constant Voltage
Watts1.46W per foot
Beam Angle120°
Lumens128 lm/ft
CRI>80
Kelvin6000-6500K
RatingIP20 Indoor
Operating Temp-5°~115°F
Max Serial Connection30 Feet
CertificationRoHS, CE
Product Lifetime50,000 Hours
Warranty Period2 Years
Wiring Diagrams
Dimmer
Amplifier
Large Load
Ribbon Star Dimensions Ribbon Star Light Meter
